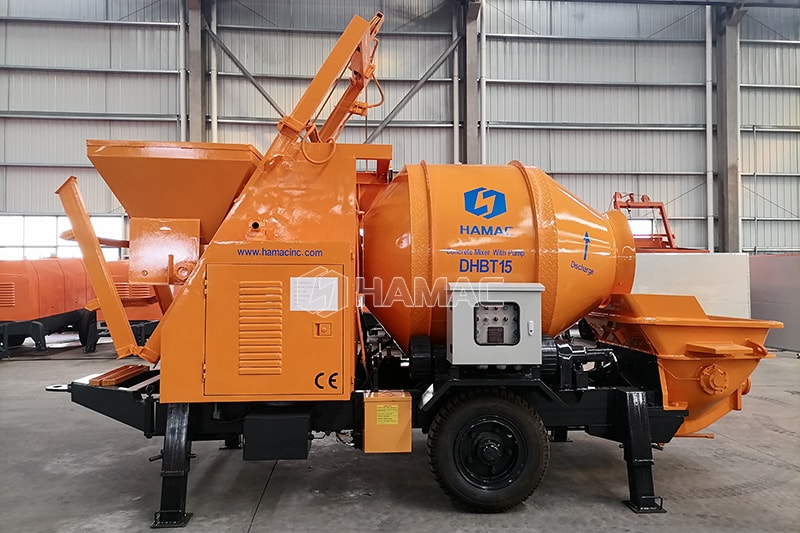

Diesel concrete mixer pump
Concrete mixer with pump is a machine integrates concrete mixer and concrete pump. We have two types as options. Electrical type and diesel engine type. The electrical type will be driven by 3P industrial AC, for some clients, it is not so convenient. So, most of the client choose the diesel engine type concrete mixer and pump. It can work everywhere as long as the fuel is enough.
With the mixing function, the concrete can be produced locally, and then directly poured into the hopper of concrete pump on trailer. So, it saves the area and cost of machines, the efficiency is much higher compared with one separate concrete mixer and one concrete pump.

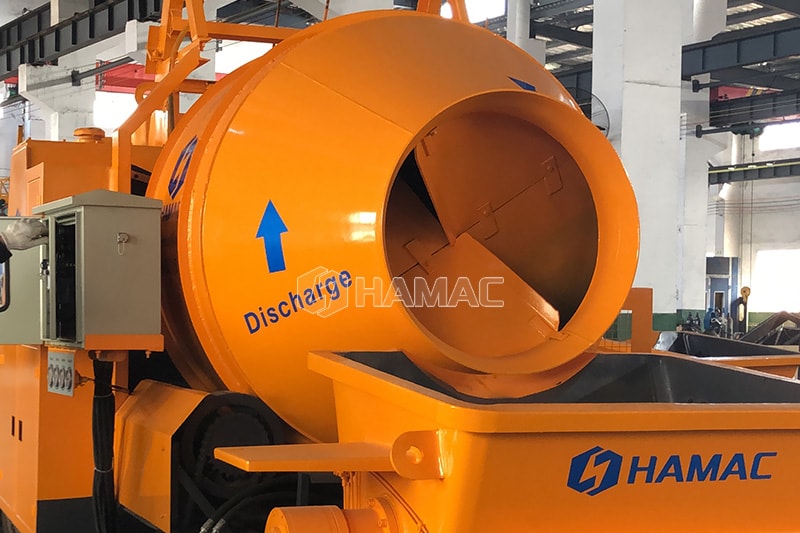

Concrete mixer and pump with two functions
Advantages:
1.It combines mixing and pumping to reduce weight and space;
2. The small concrete mixer with pump is convenient to transport in rural with high efficiency;
3. This model can save much labor and cost;
4. It is easy to operate with remote controller.
Why choose HAMAC diesel concrete mixer pump?
1. Integrated structure frame, it is more stable and safer;
2. The glass plate and cut ring are made from high quality alloy, the hardness is 64HRC(Hardness of diamond is 70HRC);
3. Original SIEMENS PLC, main electric components are provided by OMRON;
4. 62 kW/92 YUCHAI diesel engine, lower motor power than that of other suppliers. Lower consumption to work, save cost for diesel;
5. 45mm steel plate for the bottom of hopper, much stronger to withstand greater pressure;
6. Compact design, the diesel engine built in the structure frame, smaller and more convenient for moving;

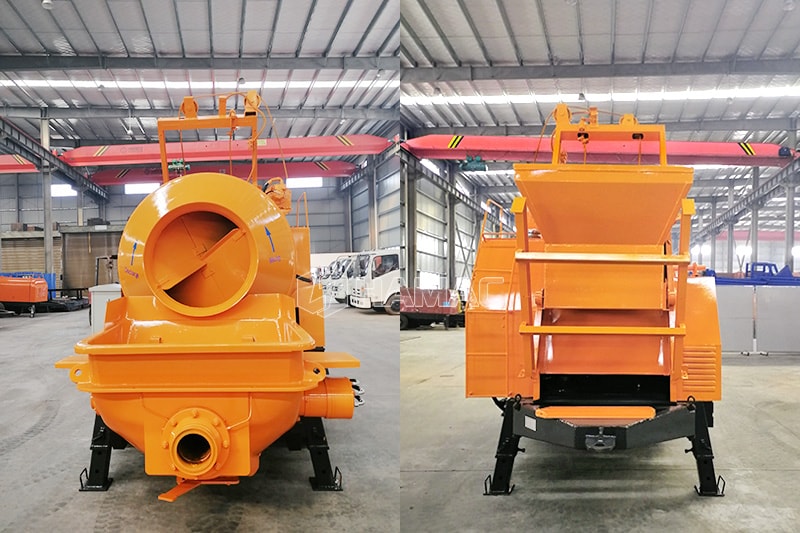

Frame of concrete mixer pump

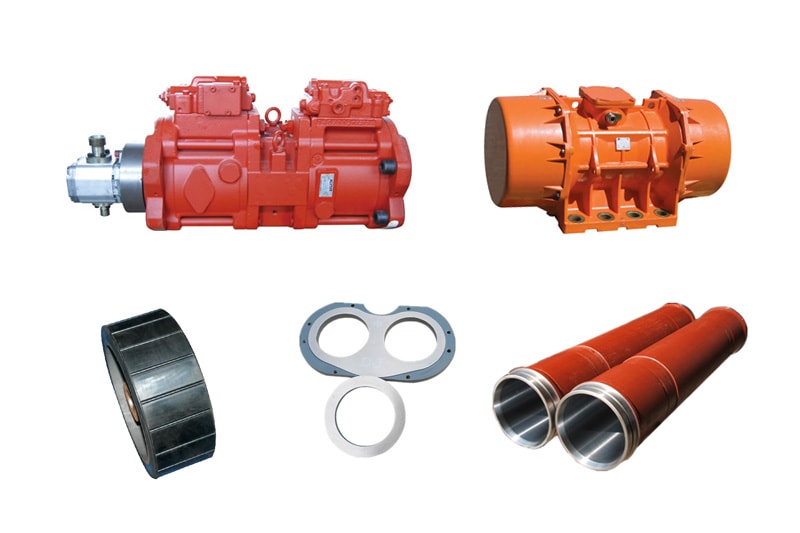

Different accessories of concrete mixer with pump

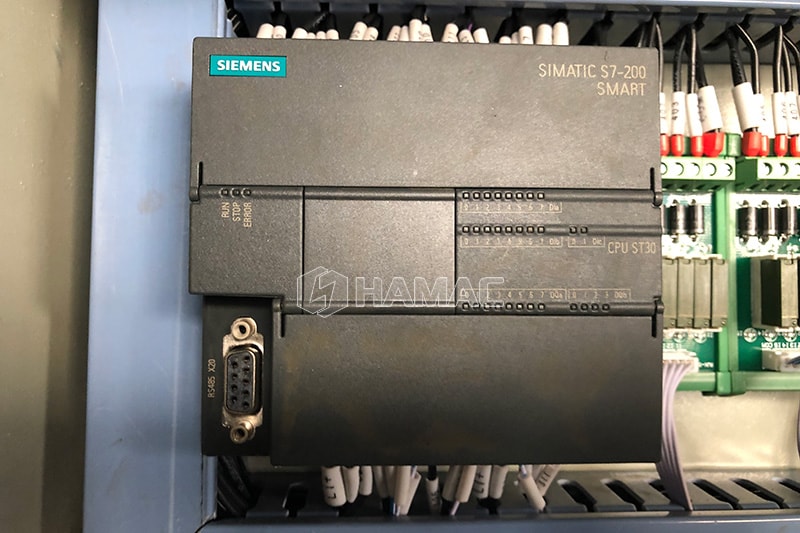

PLC of trailer concrete mixer pump

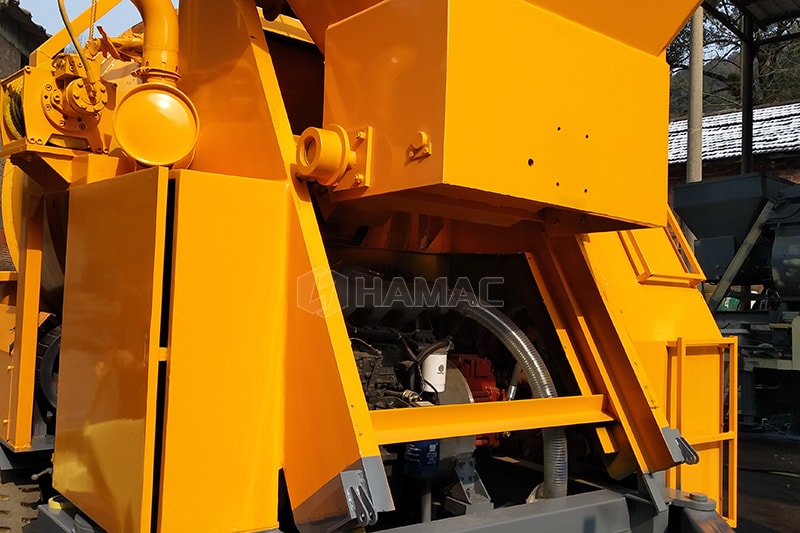

Diesel engine integrated in the concrete mixer with pump
7. Equipped with JZM450 drum type concrete mixer, 750L feeding hopper and 450L concrete output per batch, bigger than other companies’ mixer; 8mm thickness Q345 steel plate for mixer body, 12mm thickness steel plate for rolling ring; stronger and higher capacity;
8. Seamless steel pipe for concrete pumping; stronger than the common welded pipe;
9. We adopt the wearable and skid proof rubber wheel to drive the concrete mixer, its diameter is 380mm which is the biggest in China. It is covered by rubber from Malaysia, more wearable and longer service life;
10. Main hydraulic pump from KAWASAKI, valves from Italy OM. stable work performance;
11. Concrete delivery cylinder is 200mm diameter, and stroke is 1260mm, bigger and higher capacity; inwall is covered with high chrome, more wearable and longer service life; 12. Equipped with vibrator on the feeding hopper, reduce the residue material in the hopper;

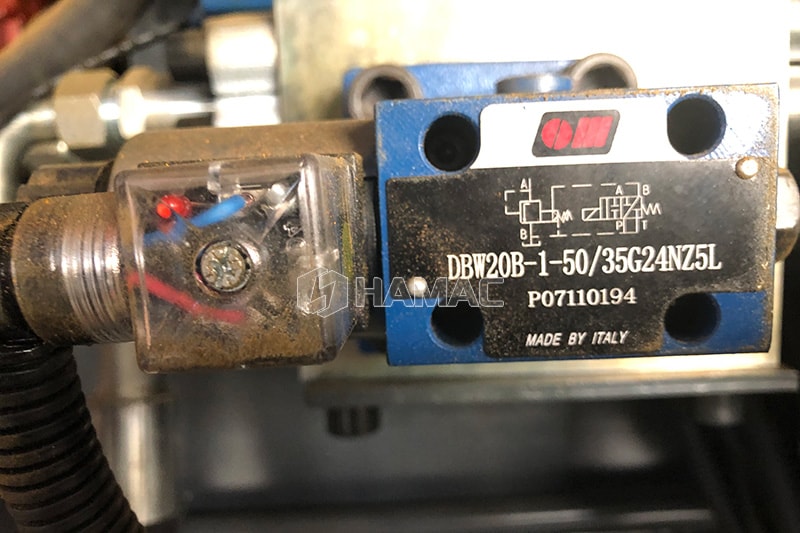

Famous brand valves for concrete mixer with pump
Thicker steel plate of hopper, more durable
Concrete mixer pump is widely used in house construction, road and bridge construction, tunnel construction and the rural working sites where is far from commercial concrete batching plant.

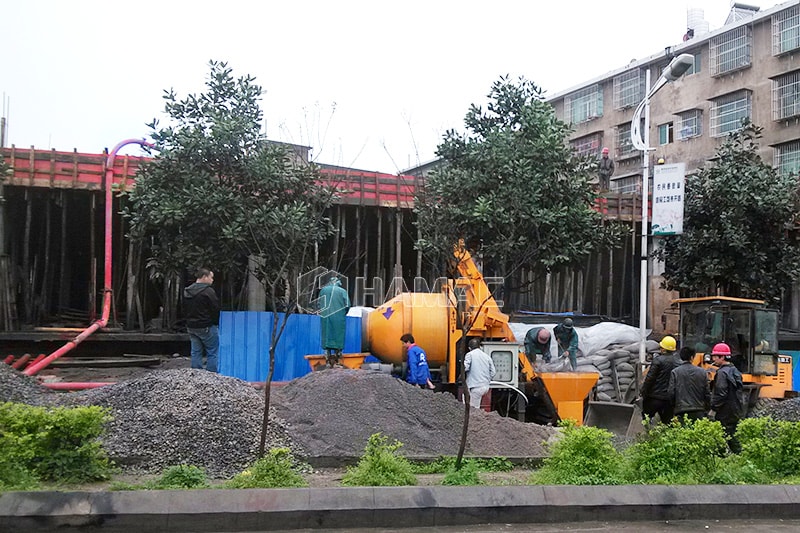

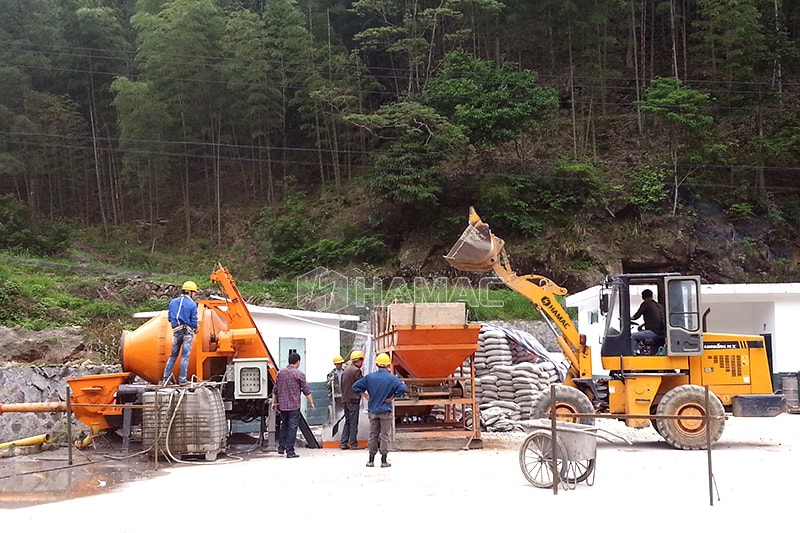

Concrete mixer with pump works with wheel loader and aggregate batching machine

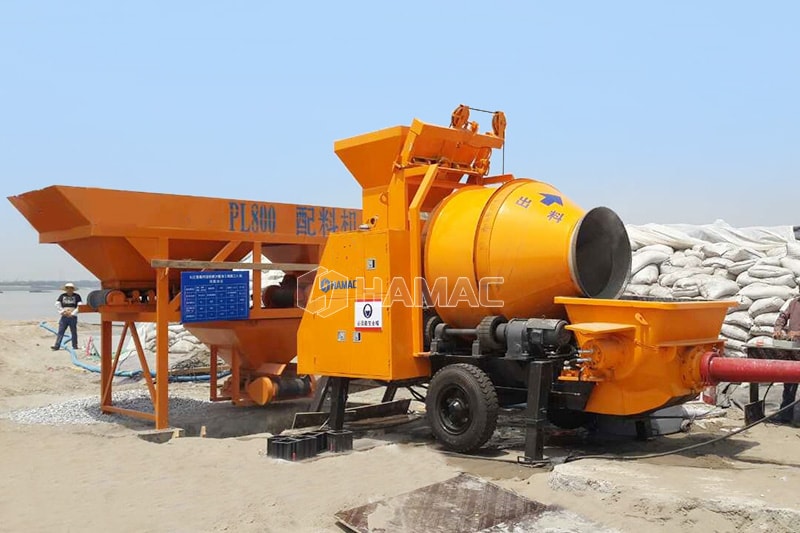

Concrete mixer with pump works with aggregate batching machine

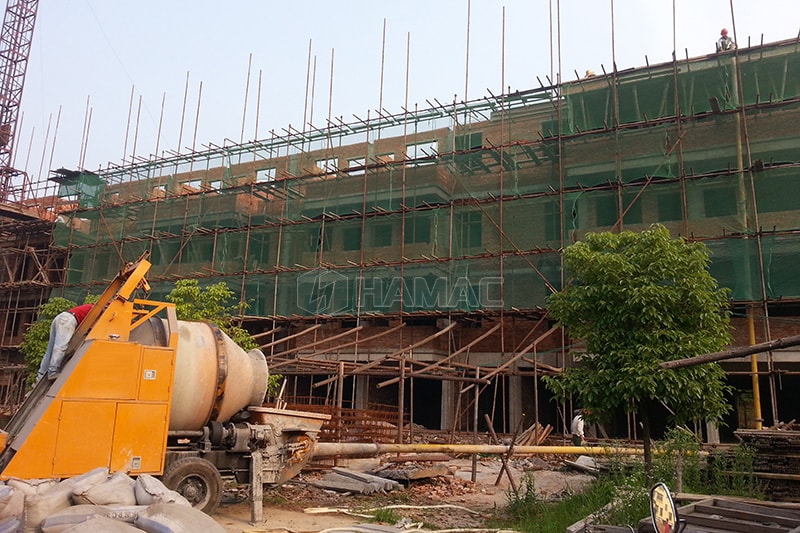

Concrete mixer with pump works in China

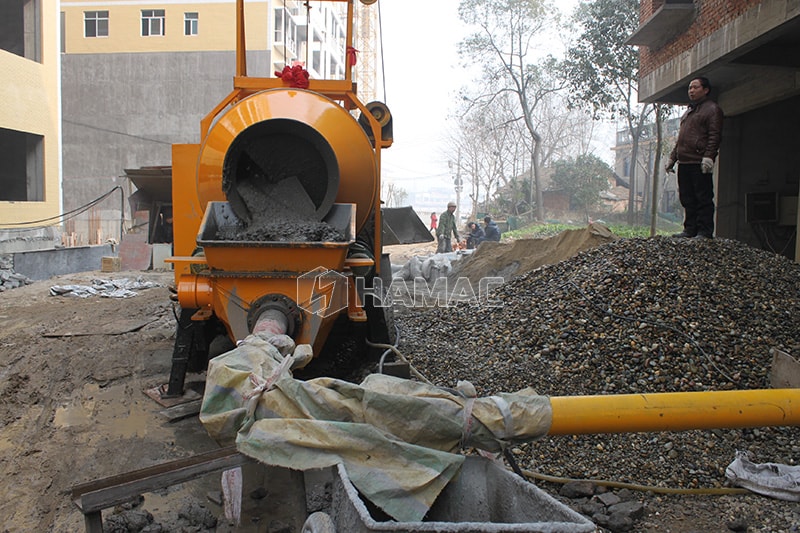

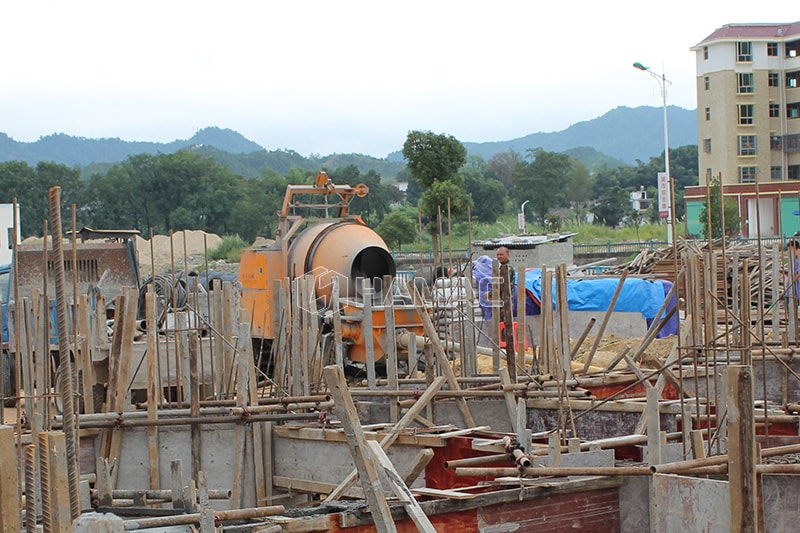

Concrete mixer with pump works for small buildings
Optional Parts
In order to produce high quality concrete with exact percentage aggregate and sand, we can equip our concrete mixer and pump an aggregate batcher. And the dosing record can be printed out. This is an optional part which can work with portable concrete mixer pump and can be delivered together.
1. Controlled by touch-screen;
2. Different formula can be saved in the system, you can choose them for different usages;
3. Equipped with alarm light, it will alert if there is not enough aggregate in the hopper;
4. It is equipped with wheels, you can move it easily in different working sites;

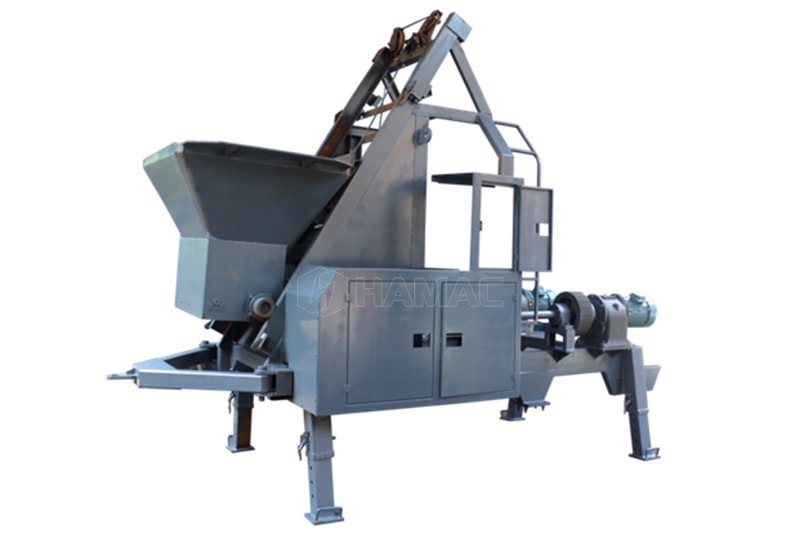

Aggregate batcher for concrete mixer with pump
Automatic aggregate batching machine
Concrete mixer with pump for sale is not only a deal for a machine, but also an once-in-15-years business opportunity that you can make money in next 5~10 years. The concrete mixer with pump for rental is a business as well. HAMAC provide you with the best concrete mixer pump in the world.

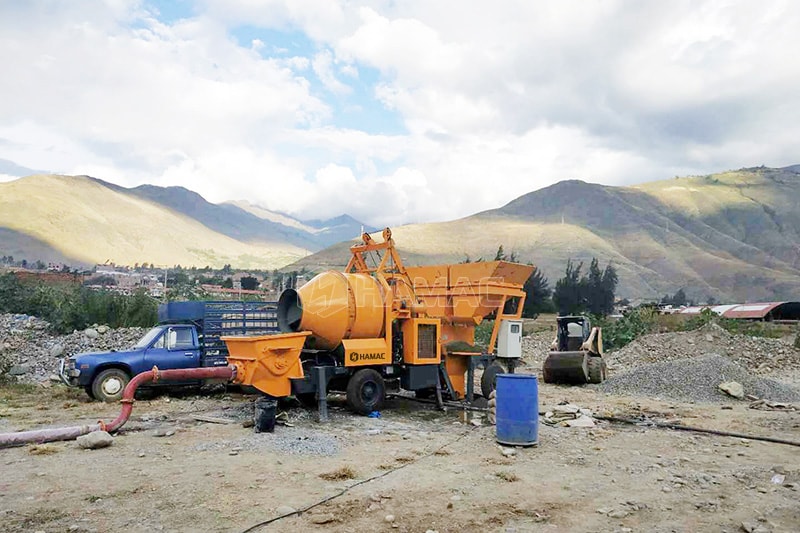

Concrete mixer with pump works with aggregate batching machine in Peru
Concrete mixer with pump works for house building
For more information, please contact our sales manager.
