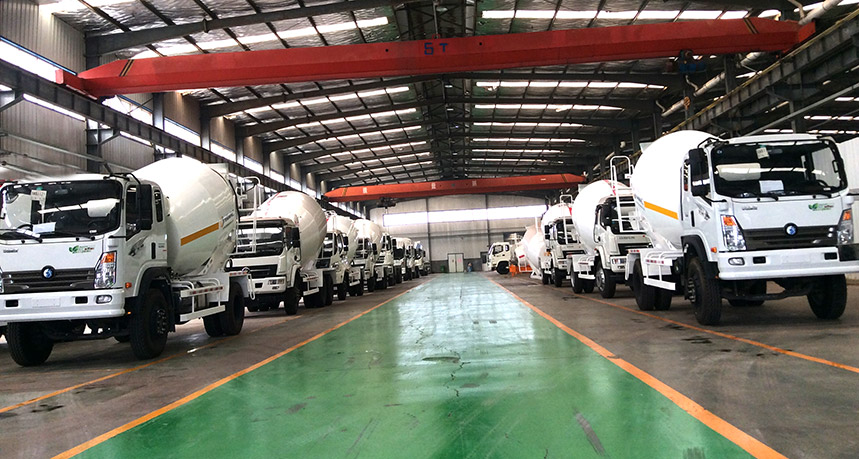

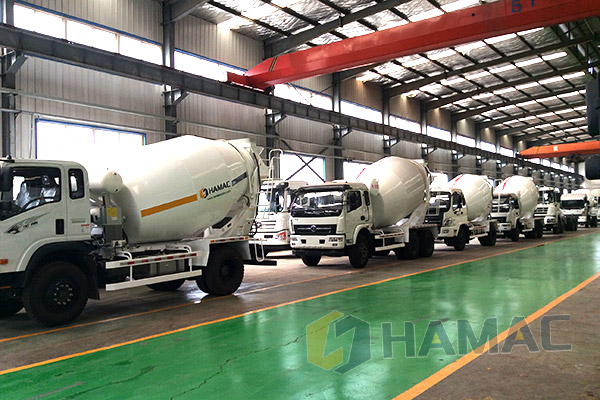

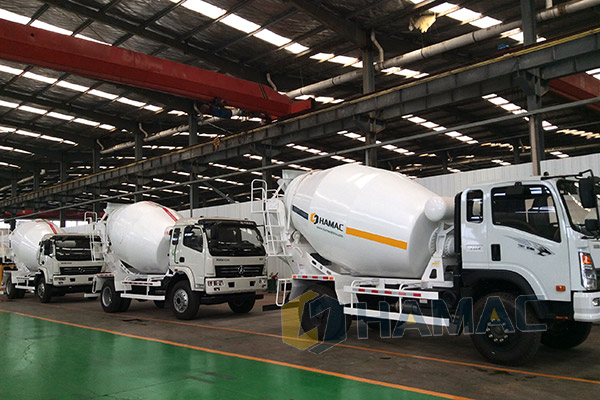

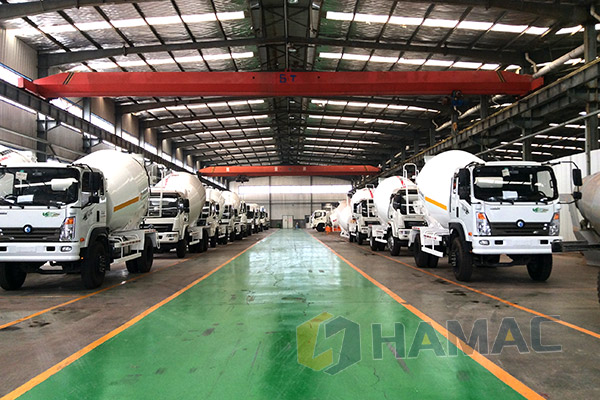

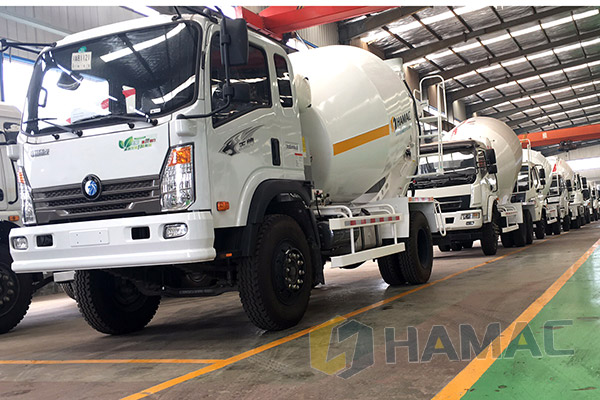

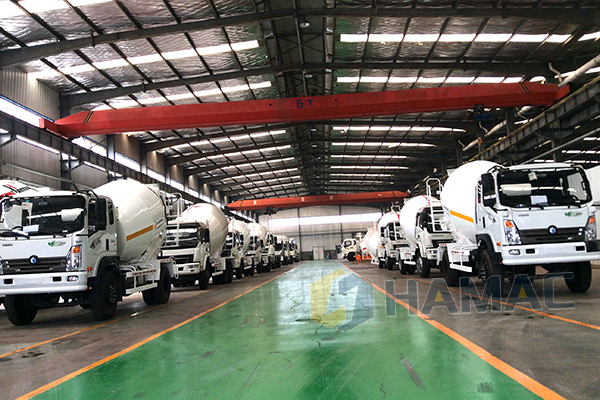

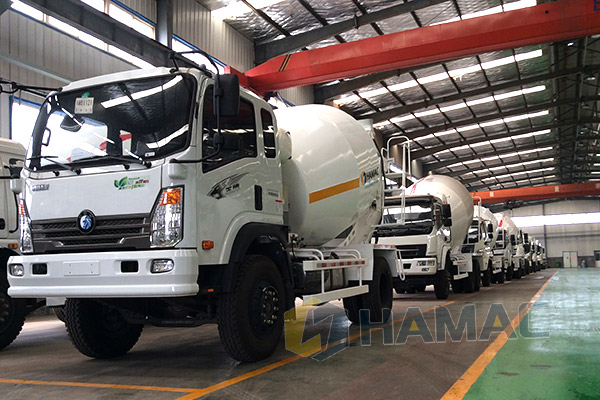

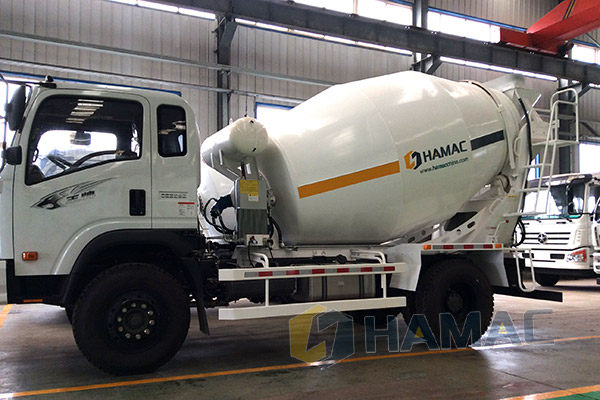

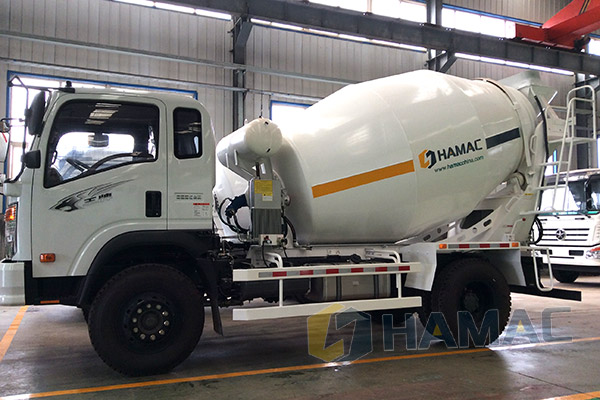

6cbm Concrete Truck Mixer

Concrete Truck Mixer

● Products :6cbm Concrete Truck Mixer

● Type :Concrete Truck Mixer

● Brand :HAMAC

● Origin :China

If you want to know more details, please contact us, we will reply you as soon as possible.

Product Introduction
6cbm Concrete Truck Mixer consists of special device for automobile chassis and concrete mixing and transporting, always keeping the mixing drum rotating in the transport process and it is the special vehicle with integration of mixing and transport. We specialized in manufacturing the small concrete mixer truck working for the narrow working environments, including underground coal mine, reclamation construction, high-speed rail construction, township pavement construction, rural housing construction.

Hot Sale in stock: HMC3.5 Self-loading Concrete Mixing Truck - 4m3 Concrete Mixing Truck   - 6m3 Concrete Mixing Truck  - 8m3 Concrete Mixing Truck   - 10m3 Concrete Mixing Truck   - HMC1.5 Self-loading Concrete Mixer HMC4.0 Self-loading Concrete Mixer  Get quote or inquiry!

Benefits & Features
6cbm Concrete Mixing Truck is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured, effectively delay concrete coagulations, avoid concrete stratification and eduction, and ensures construction quality and speed.

6cbm Concrete Mixing Truck  has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works.



1.  Principal components of the concrete mixer truck
(1) Hydraulic System: hydraulic pump, hydraulic motor.
(2) Drivetrain System: reductor.
(3) Control System.
(4) Mixing System.
(5) cleaning system.

2. Advantages of concrete mixer truck
(1) High-intensity drum material.
(2) featuring better wear-resistance and long service life.
(3) Germany IFM sensors
(4) low material residue.
(5) High-quality parts.
(6) Excellent performance and convenient operation.
(7) Imported original hydraulic system(Bosch Rexroth Brand).
(8) PMP or CF reducer

Tags: concrete transit mixer for sale in General of Santos concrete trailer mixer in Manda luyong portable electric concrete mixer in Manda luyong concrete mixer enginesspider concrete pump placing boom in Cebuconcrete pump elephantconcrete pump simen jumbo

More Info
We are professional on producing the various types of concrete mixing truck. We choose the famous truck factories as our partners to provide us with the reliable chassis. Especially our small model mixing truck, it is suitable for some scale projects.

6m3 CONCRETE MIXER TRUCK STANDARD PARAMETER

Overall parameter
Overall dimension 7300*2350*3650mm
Kerb weight 8250kg
Mixing Drum parameter
Mixing drum High quality wear-resistance steel
Model:Q345
Drum body thickness: 5mm, End cover thickness:6mm
Agitating capacity 6 m3
Drum overall dimension(with frame) 4909*2208*2439mm
Mixing drum size Diameter: Φ2112mm Length: 3612mm
Charging rate ≥2m3/min
Discharging rate ≥1.5m3/min
Residual rate ≤0.5%
Water supply Sistema de suministro de agua neumática
Water tank capacity 450L
Radiator 18L
Reduction gear FUXIN Reducer,
Hydraulic pump Sunny ,America brand
Hydraulic motor Sunny ,America brand
Accessory Tool box
Chassis parameter
Chassis Brand SINO Truck WANGPAI (CDW)
Chassis model 4X2 CDW chassis
Axle base 3650
Driving type Left hand drive(LHD)
Enginemodel YC4S150-50
Rated power (HP) 150HP (110kW)
Emission standard National Standard V
Fuel type Diesel
Tyre 9.00R20
Cab type WP ( without air-conditioner )
Operating braking system Double pneumatic braking circuit
