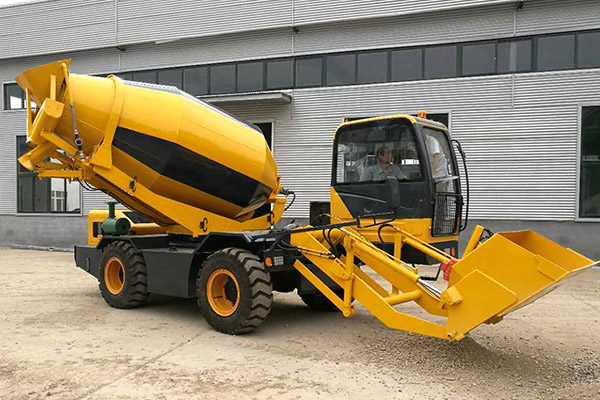

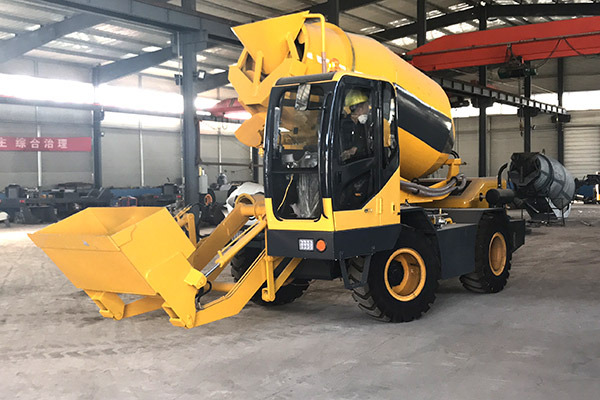

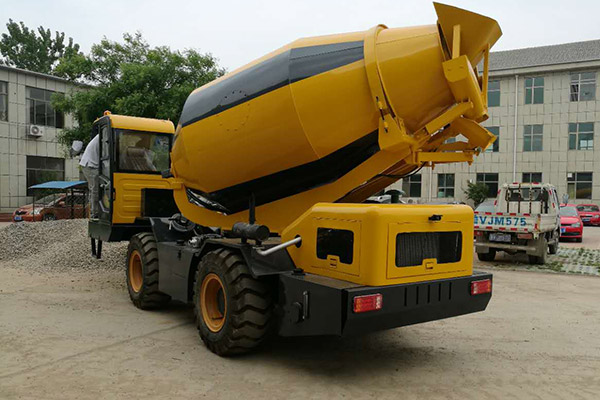

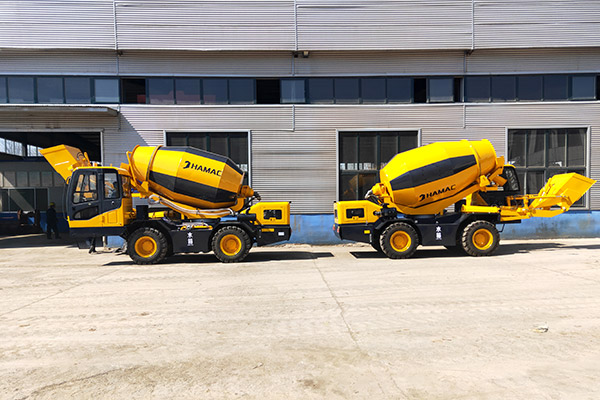

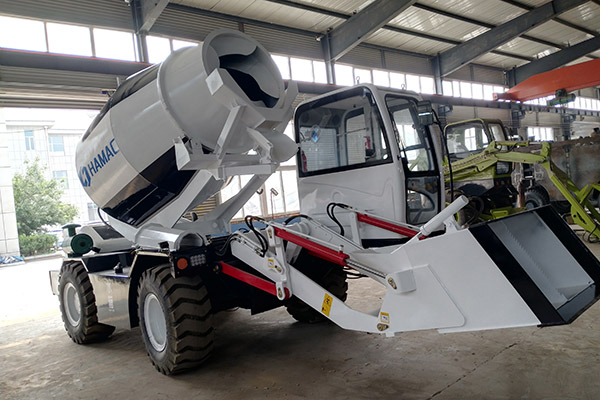

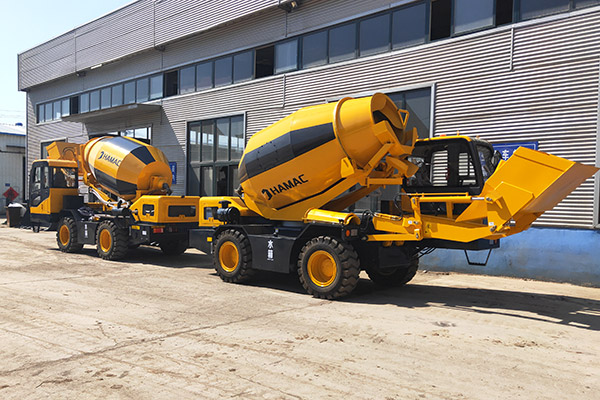

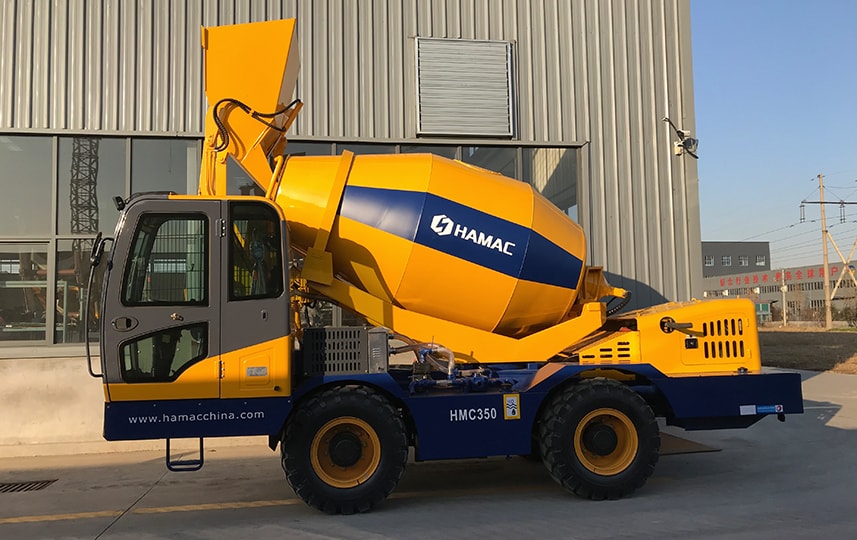

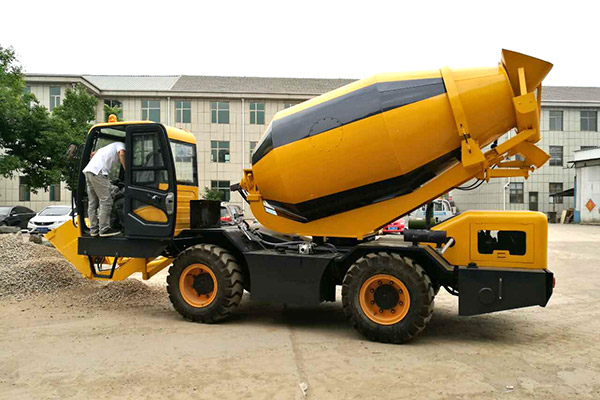

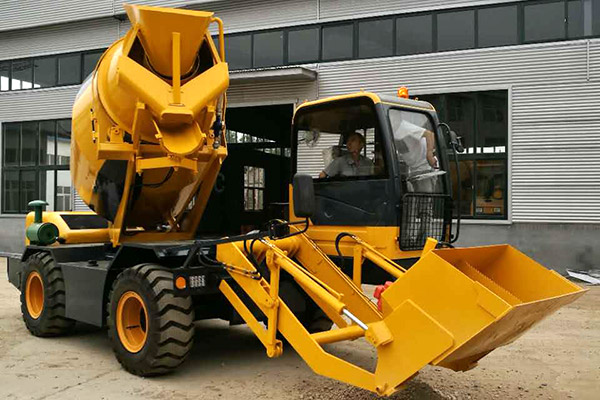

HMC350 Self-loading Concrete Mixer

Self loading Concrete Mixer Truck

● Products :HMC350 Self-loading Concrete Mixer

● Type :Self loading Concrete Mixer Truck

● Brand :HAMAC

● Origin :China

If you want to know more details, please contact us, we will reply you as soon as possible.

Product Introduction
HMC350 Self-loading Concrete Mixer is a mini-mobile concrete batching plant, its capacity Of one Batch is 3.5m3, it owns all the functions of concrete batching plant, loading, weighing, pumping, mixing, travel, discharge and washing. It can produce concrete independently and efficiently in remote areas.

Drum geometric volume is  4.8 m3. Concrete drum output:3.5m3, Double mixing screws. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed dependends on the speed of  diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for discharging on the four sides of the vehicle.

It is easy to operate and cost efficient to produce and distribute fresh concrete for mining, industrial complexes, shopping plazas, office buildings, warehouses, and residential homes for applications such as footings, poured foundations, floors, sidewalks, driveways, curbs, patios, pools, etc.
Benefits & Features
SCOPE OF APPLICATION

1. House and workshop in remote areas;
2. concrete road;
3. Water canal;
4. Infrastructure in remote areas;
5. Reservoir dam project

Advantages:

1. It combines loading, mixing, transit and discharging;
2.  Famous brand engine, YUCHAI and CUMMINS as options;
3. An electronic weighting system and printer is available, The weighing scales monitor is at the operator's convenience to certify 100% quality concrete is produced.
4.  Water pump has the ability to draw water from any water source available (ponds, Lakes, rivers, water containers, etc.) to its water tank. From its tank, the water is pumped through the flow meter, making sure the right amount of water is added, to the drum.
5. 270 degree rotation mixing drum, it can discharge the concrete in different directions;
6.  Equipped with famous brand hydraulic system for stable work performance;
7.  4*4 drive mode, it is suitable for different rough working conditions;
8. Equipped with washing system, you can make the machine clean immediately after finishing working;
9.  Well-decorated cabin for driver, equipped with air conditioner; more comfortable;
10. All the functions controlled by joystick and buttons,
11. 4 wheels steering and 2 wheels steering optional;
12.  It can be delivered by the container, save cost for sea freight.

Tags: Countercurrent Concrete Mixers in Illigan ready mix truck capacity in Illigan concrete truck mixers for sale in Illigan driver concrete mixer jobsthinset concrete mixerconcrete agitator barrelmobile concrete pump dwg files

More Info
3.5/4.0 m3 Self-loading concrete mixer Technical Data
No. name  Detailed information
1 Mixing system  Drum geometric volume is  4.8 m3. Concrete drum output:3.5m3, Double mixing screws. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed dependends on the speed of  diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for discharging on the four sides of the vehicle.
2 Max. capacity 16/14 cubic meters per hour;
3 Transmission Diesel engine drives the torque converter, there is a tranmission shaft installed on it to drive the tranmission box which will be used to driven the four wheels;
  High and low speed  flexible shaft shift gear
4 Running mode Hydraulic running,
5 Joymix All hydraulic functions of shovel controlled by a single fully servo controlled Joystick.
6 Hand shank  To controll the mixing drum roration
7 Diesel engine YUCHAI, YCD4J22T-115,water cooled,4 cylindrs,2400r/min, Rated power: 85kW
8 Hydarulic pump double gears, 2080/2040
9 Loading shovel  Effective capacity per load 600 liters, complete with hydraulic opening gate.
10 Discharging chute Slewing and mechanically tilting. Fitted with two pins easily detachable to increase the discharge height.
11 Water tank 2*350L
12 Tanks Fuel tank: 176L, Hydraulic oil tank: 110L
13 Tyre Off road industrial type 16/70-20
14 weighing system Electronic system,“Load cells” acting on the arm, display and printer in the cab.
15 Servicing brake vacuum servo brake
16 Parking brake automatically air-cut brake
17 Water supply system Self-contained. Hydraulic driven water pump, water meter, washing outlet. High pressure water pump for washing;
18 Electric system 24V
19 Overll dimension Legnth: 7800mm; Width: 2500mm;Height: 3400mm;Wheel base:2300mm; Tread:1900mm
20 Runnding speed  Low speed:  0-8  KM/H;High speed:  0-25 KM/H;
21 Min. Turning radius 6400mm
22 Weight 7200kgs
