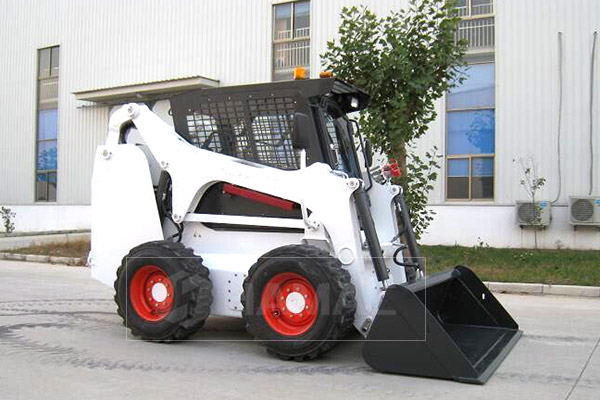

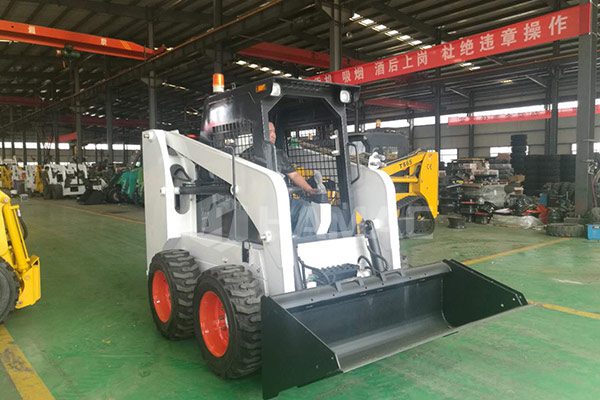

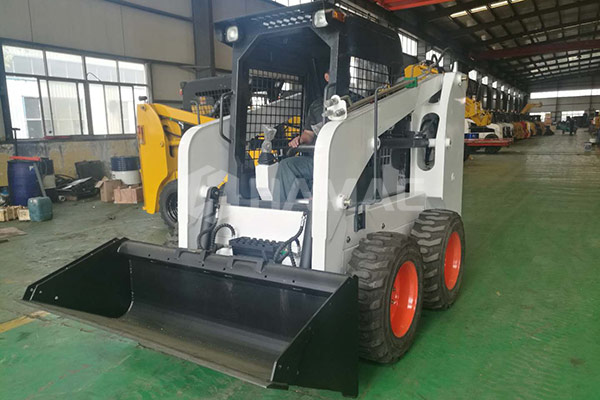

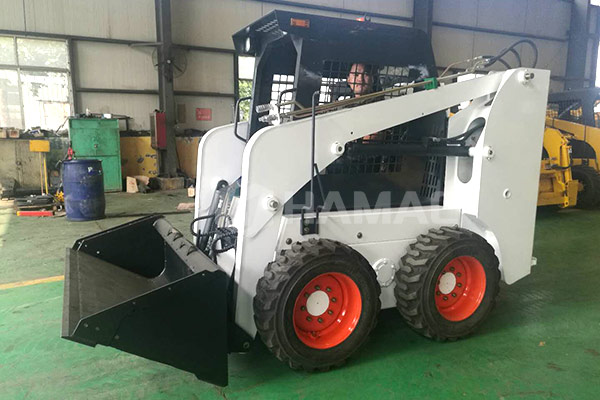

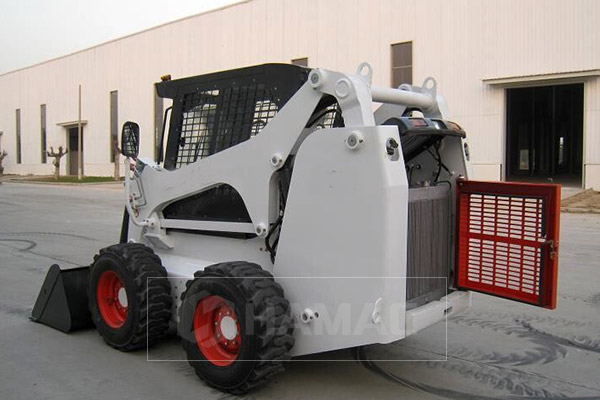

V series Wheeled Skid Steer Loader

Skid Steer Loaders

● Products :V series Wheeled Skid Steer Loader

● Type :Skid Steer Loaders

● Brand :HAMAC

● Origin :China

If you want to know more details, please contact us, we will reply you as soon as possible.

Product Introduction

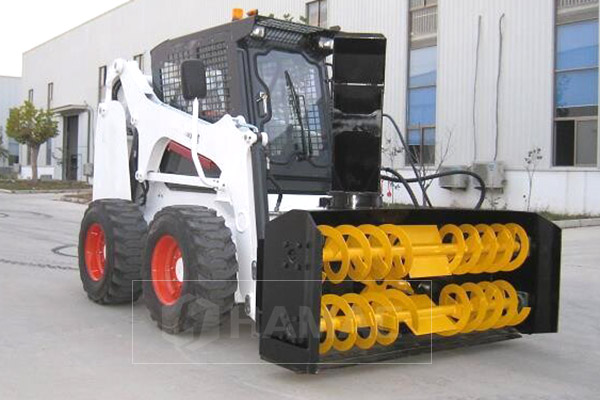

V series Wheeled Skid Steer Loader is a new generation of small multi-function equipment integrating mechanics, electronics and hydraulics under the independent research and development of HAMAC, with every performance index having reached the international advanced level. The machine features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance. It is especially applicable to urban infrastructure, roads or construction sites, workshop, warehouse, dock, ship deck, even inside of cabin and other places with narrow space and frequently-changed operational contents. By changing different devices, it realizes the shoveling and carrying, lifting, digging, drilling, crushing, scraping,scarification, snow blowing, deicing, road sweeping, pavement milling, and compaction operation.
Benefits & Features

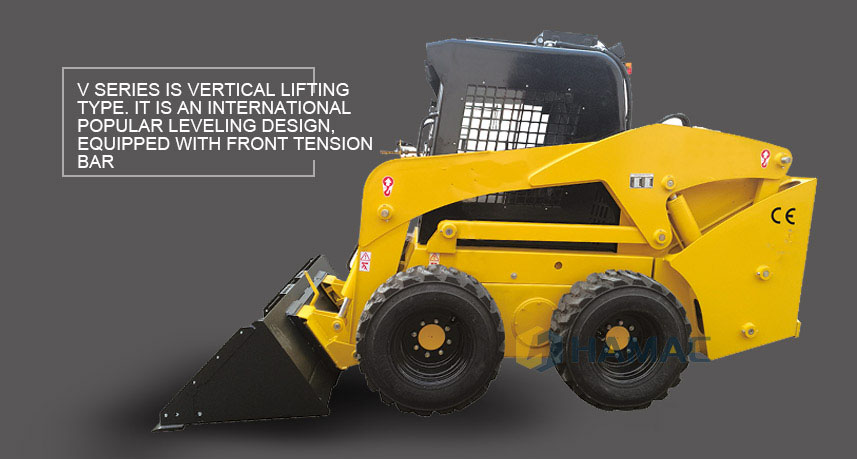

1. V series is vertical lifting type. It is an international popular leveling design, equipped with front tension bar and rear arm to ensure the lifting arm is always vertical no matter up and down;
2. Equipped with powerful diesel engine. The stronger overall working arm is equipped with big cylinders. Its maximum lifting force is more than 3000kgs. The maximum working flow is 140L/min.

Tags: skid steer rubber tracks suppliers in Caloocan stand up skid loader in Caloocan skid loader manufacturers in Caloocan concrete lift mixer machinesany placing boom hg32celba concrete pump spare partsmixer planetar 30l parts

More Info
Combination Bucket
Combination Bucket
Pallet Forks
Pallet Forks
Dozer Blade Grader Leveler
Dozer Blade Grader Leveler
Snow Pusher
Snow Pusher
Grapple Bucket
Grapple Bucket
Grapple Rake
Grapple Rake
Bale Squeeze
Bale Squeeze
Grapple Rock Bucket
Grapple Rock Bucket
Hay Spear
Hay Spear
Mixer
Mixer
Digging Backhoe
Digging Backhoe
Utility Digging Backhoe
Utility Digging Backhoe
Pick Up Broom
Pick Up Broom
Tree Spade
Tree Spade
Model HC100V HC120V
Operating Load (kg) 1200 1500
Max. Speed (km/h) 12 12/18
Hydraulic flow (L/min) 75 75
Max. Working Flow (L/min) 120 140
Tire Model 12-16.5 12-16.5
Rated Power (kW) 74 103
Fuel tank Volume (L) 100 100
Self Weight (kg) 4500 4600
Bucket Volume (m³) 0.5 0.55

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Structure Data:

Main data/Model HC100V HC120V
Overall operating height (mm) 4250 4250
Height to bucket hinge pin (mm) 3250 3250
height to top of cab (mm) 2160 2160
Height to bottom of level bucket(mm) 3083 3083
Overall length without bucket(mm) 3100 3100
overall length with bucket(mm) 3800 3800
Dumping angle at maximum height(° ) 40 40
Dumping height(mm) 2500 2500
Dumping reach(mm) 750 750
Rollback o bucket on ground(° ) 25 25
Rollback of bucket at full height(° ) 124 124
Wheelbase(mm) 1115 1115
Ground clearance(mm) 210 210
Angle of departure(° ) 20 20
Front turning radius without bucket(mm) 1250 1250
Front tuning radius(mm) 2112 2112
Rear tuning radius(mm) 1992 1992
Rear axle to bumper (mm) 1302 1302
Tread width, centerline to centerline (mm) 1500 1500
Width (mm) 1880 1880
Bucket width (mm) 2030 2030
