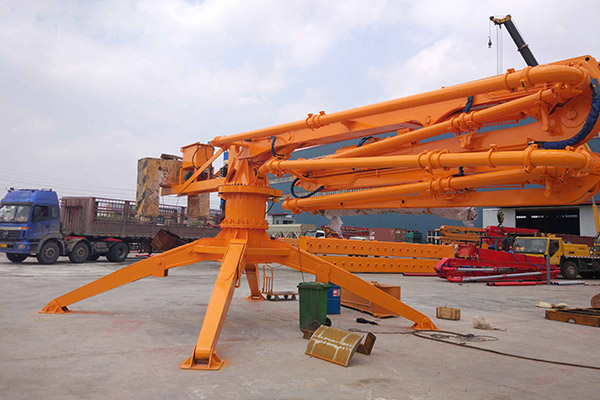

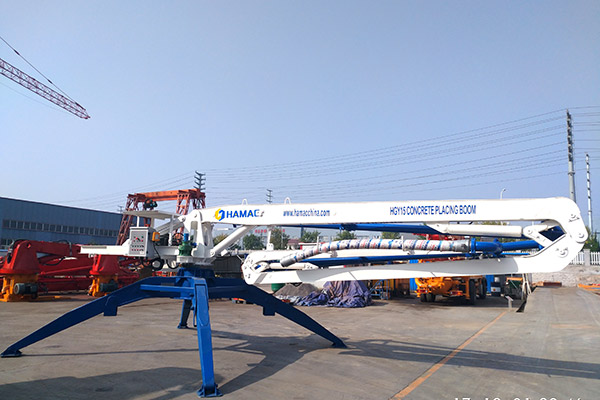

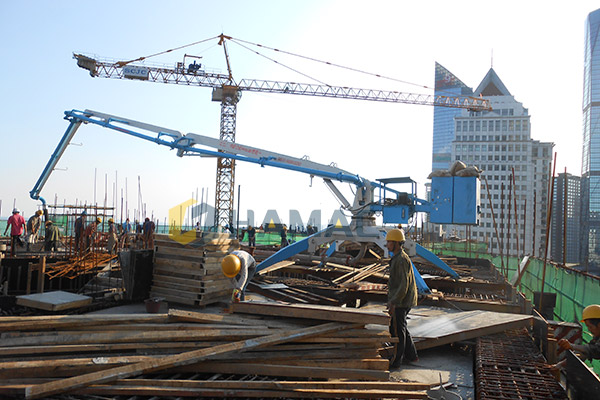

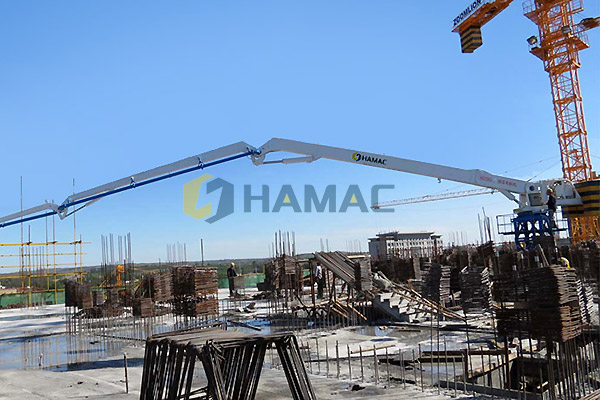

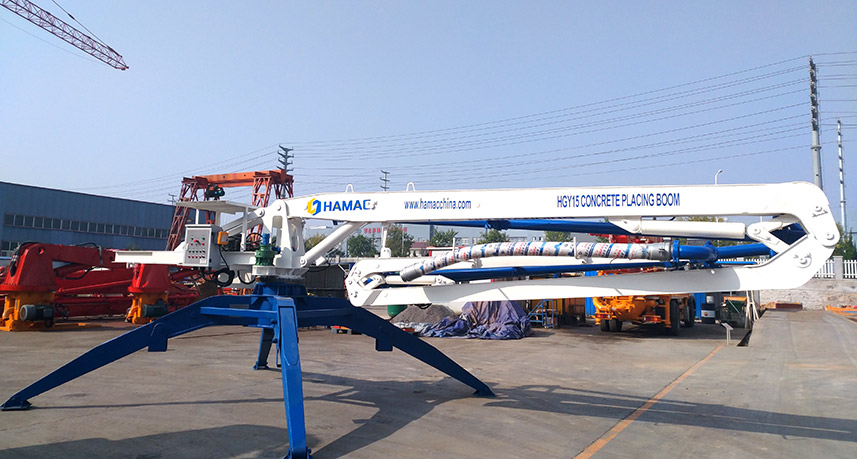

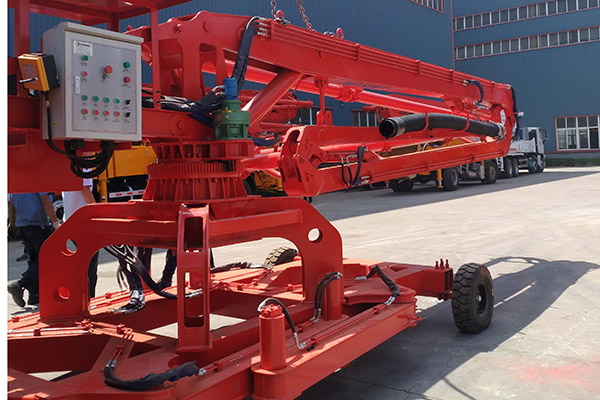

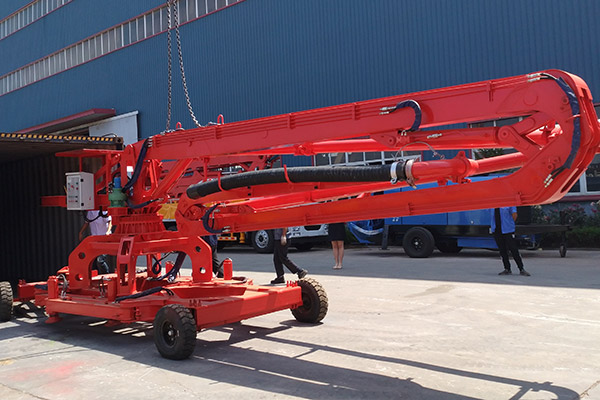

Concrete placing boom is a new product developed for enlarging the range of concrete pouring and improving the mechanization level of pumping construction. Being corollary equipment of concrete pump, it increases the range of concrete pumping by connecting with concrete pump; also, in effectively solving the hard problem of material distribution in wall pouring, it plays an important role in increasing construction efficiency and reducing labor intensity. This kind of concrete placing boom is reasonably designed, with stable and reliable structure, and the whole machine can be easily operated and flexibly turned due to its all direction and boom-type distributing structure, featuring character of high efficiency and energy-saving, as well as being economical and practical, etc.

Hot Sale in stock: DHBT40 Diesel concrete pump - HBT60 Electric concrete pump - HBT15 Concrete mixing pump - 42m Concrete Boom Pump Truck - 17m Concrete Placing Boom - HBT80 Electric concrete pump - Get quote or inquiry!

Benefits & Features

1. It can be placed according to needs of field pouring.
2. Compact structure, light weight, and can be hoisted and transported as a whole.
3. Flexible, widely use and applicable for complex construction site.
4. Easy operation, safe and reliable, economical and practical.

Tags: tower boom concrete pump in Cebu concrete boom pumps in Cebu concrete boom truck in Cebu placing boom colombia parts for concrete mixer hongda concrete pump skid steer loader caterpillar

More Info

Item	HGY13	HGY15	HGY17	HGY21
Max. Placing Radius (M)	13	15	17	21
Big Arm Length (M)	3.7	6	6.66	6.496
Big Arm Elevation (°)	-2～84.4	0～70	0～65	0～65
Medium Arm Length (M)	4.52	5	5.73	4.585
Medium Arm Length (M)	4.52	5	5.73	4.59
Medium Arm Elevation (°)	0～180	0～180	0～180	0～180
Medium Arm Elevation (°)	0～180	0～180	0～180	0～180
Small Arm Length (M)	4.78	4	4.61	5.029
Small Arm Elevation (°)	0～180	0～180	0～180	0～180
Hose Length (M)	3	3	3	3

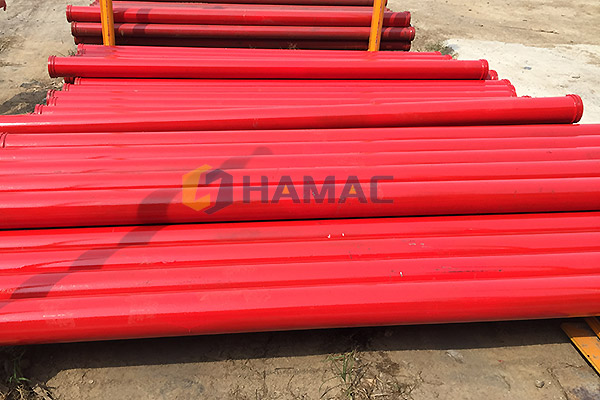

Concrete Delivery Pipe (Mm)	Ø125×6	Ø125×6	Ø125×6	Ø125×6
Tail Rotary Radius (M)	2.72	2.81	3.51	3.51
Total Power (Kw)	4	4	5.5/7.5	11
System Pressure (MPa)	24	24	24	24
Rotary Speed (R/Min)	0.3—0.8	0.3—0.8	0.3—0.8	0.3—0.8
Rotary Range (°)	0～360	0～360	0～360	0～360
Supporting Legs Span (M)	3.15×3.15	4×4	4.6×4.6	4.6×4.6
Overall Height (M)	2.9	2.6	3.2	3.2
Bare Machine Weight (Kg)	2700	3230	5000	10000
Balance Weight (Kg)	2×900	2×1100	2200	2×2500
Control Mode	Panel/ Wireless Remote Control	Panel/ Wireless Remote Control	Panel/ Wireless Remote Control	Panel/ Wireless Remote Control
