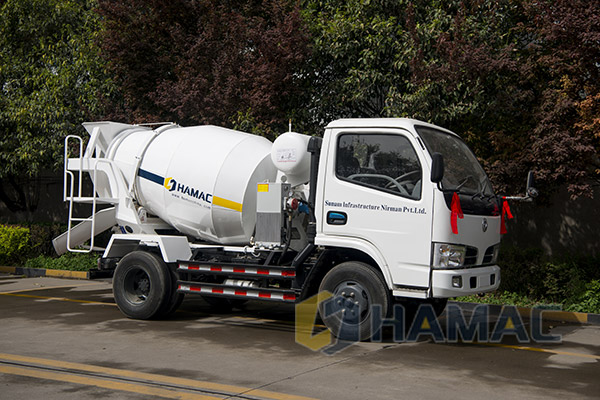

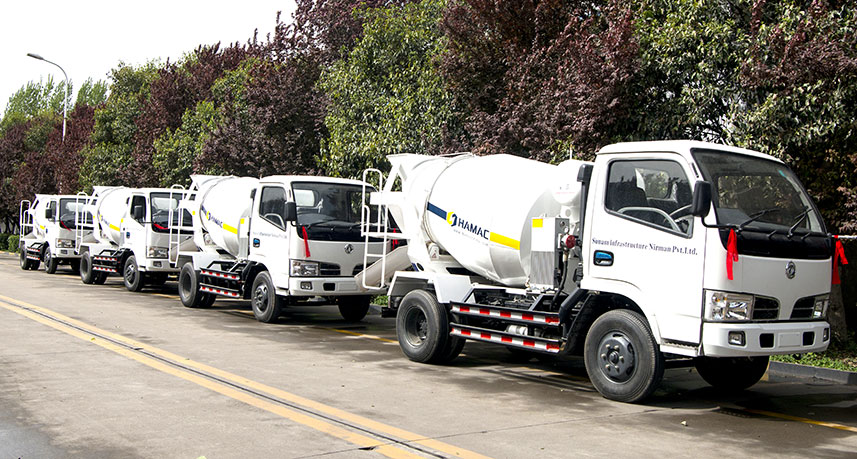

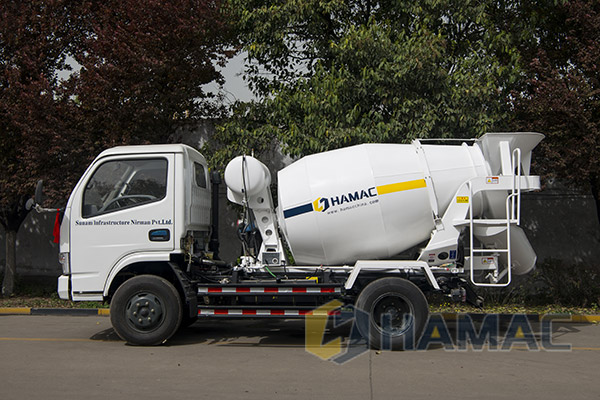

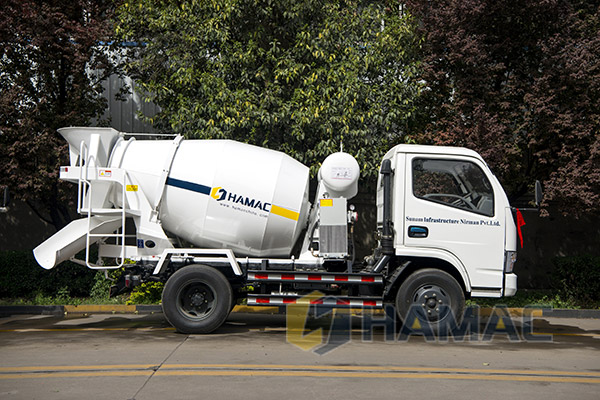

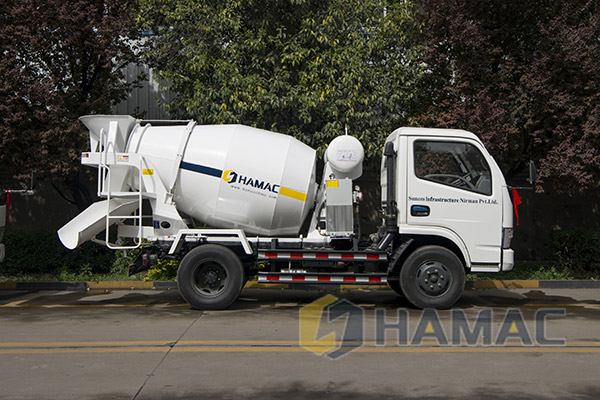

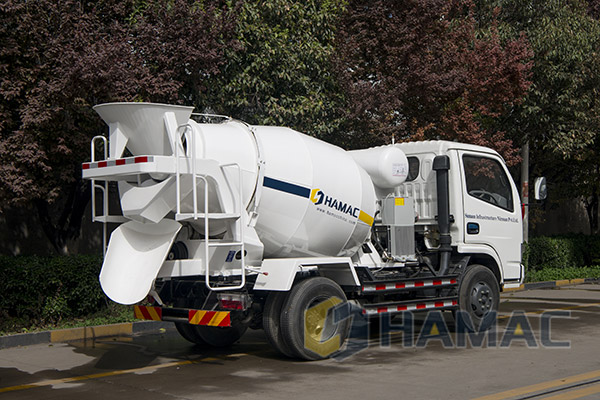

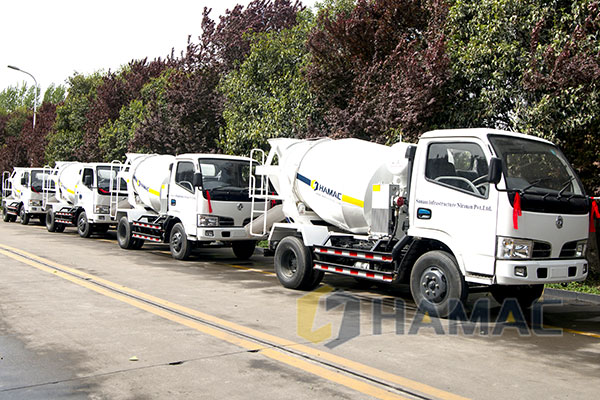

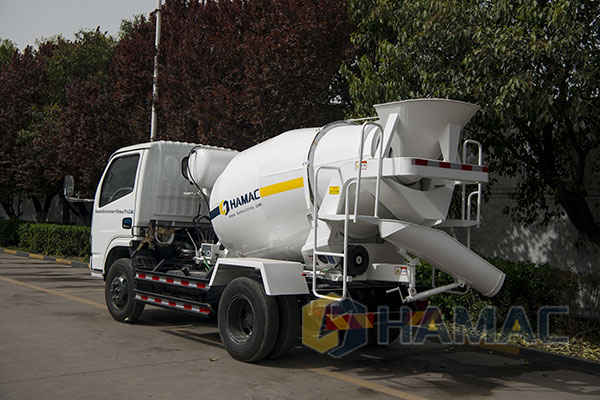

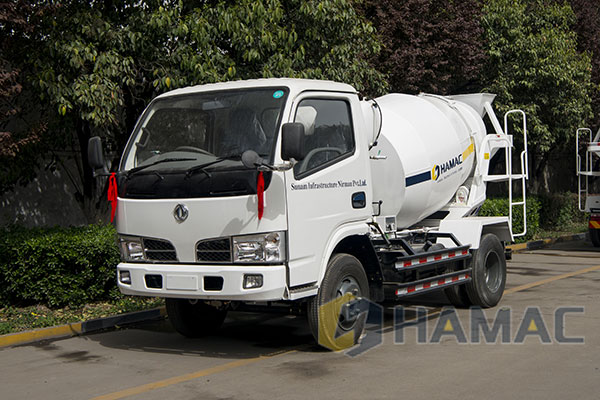

4cbm Concrete Truck Mixer

4cbm Concrete Mixing Truck is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured, effectively delay concrete coagulations, avoid concrete stratification and eduction, and ensures construction quality and speed.

4cbm Concrete Mixing Truck  has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works.



1.  Principal components of the concrete mixer truck
(1) Hydraulic System: hydraulic pump, hydraulic motor.
(2) Drivetrain System: reductor.
(3) Control System.
(4) Mixing System.
(5) cleaning system.

2. Advantages of concrete mixer truck
(1) High-intensity drum material.
(2) featuring better wear-resistance and long service life.
(3) Germany IFM sensors
(4) low material residue.
(5) High-quality parts.
(6) Excellent performance and convenient operation.
(7) Imported original hydraulic system(Bosch Rexroth Brand).
(8) PMP or CF reducer

Tags: standard transit concrete mixers in Manda luyong 2 bag concrete mixer in Manda luyong self loading mobile concrete mixer in Manda luyong stationary concrete pump price in Davaoconcrete mixers in ghanagehl skid loader attachmentsconcrete pump for sell in Davao

We are professional on producing the various types of concrete mixing truck. We choose the famous truck factories as our partners to provide us with the reliable chassis. Especially our small model mixing truck, it is suitable for some scale projects.

4m3 CONCRETE MIXER TRUCK STANDARD PARAMETER
Name	4m3 CONCRETE MIXER TRUCK	Model of engine	YC4D130-41  turbocharging intercooling
Chassis model	FOTON  BJ1143VJPFA-1	Engine type	Forced circulation cooled
Total weight (kg)	13570	Engine displacement (L)	4200
Dimension L*W*H(mm)	6460*2255*3300	Engine power (kW)	96
Wheel base(mm)	3400	Max. standard engine speed(r/min)	3200
Front overhang(mm)	1230	Barrel geometric volume (m³)	4.5
Rear overhang(mm)	1830	Max. mixing volume (m³)	4
Max. gradeability(degree)	25	Feed rate (m³)	≥0.5
Max. speed(km/h)	≤83	Discharge rate (m³)	≥0.8
Turning diameter (m)	≤15	Max. rotate speed (r/min)	6-15
clutch	double dry type clutch	Barrel slope (°)	16
Transmission type	shaft type	Diameter of mixing barrel (mm)	Φ1800
Drive mode	rear wheel drive	Gear box	Ky67-3-c
Steering mode	Hydraulic assisted	Hydraulic pump	63 gear pump
Service brake	Air disconnected brake	Hydraulic motor	gerotor motor
Parking brake	Air rear brake	Water tank volume (L)	62
Tyre	8.25-20	Water supply way	Air pressure
