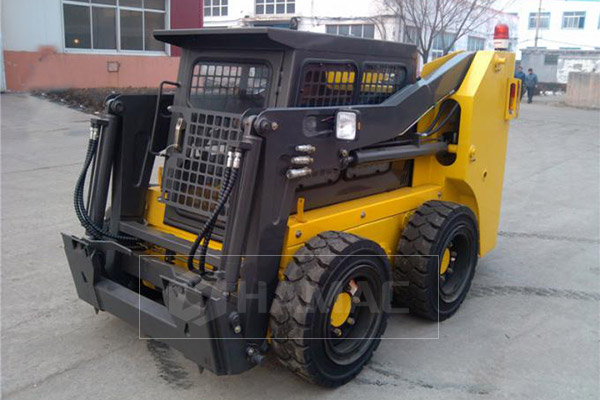

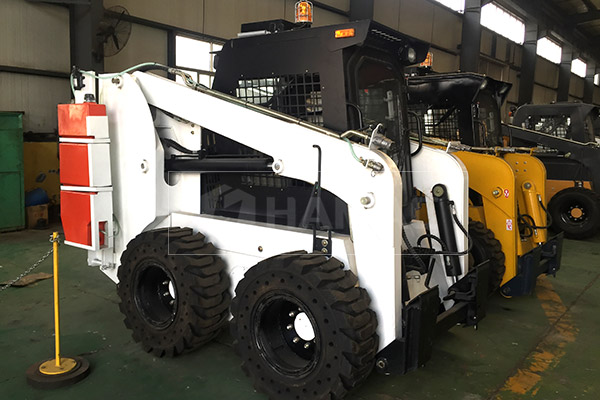

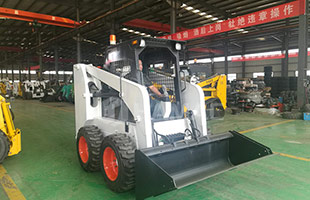

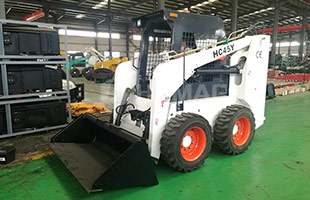

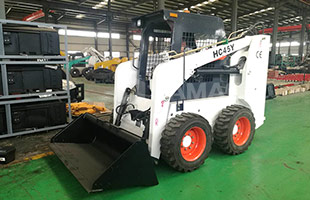

L series Wheeled Skid Steer Loader

Skid Steer Loaders

● Products :L series Wheeled Skid Steer Loader

● Type :Skid Steer Loaders

● Brand :HAMAC

● Origin :China

If you want to know more details, please contact us, we will reply you as soon as possible.

Product Introduction
L series Wheeled Skid Steer Loader is a new generation of small multi-function equipment integrating mechanics, electronics and hydraulics under the independent research and development of HAMAC, with every performance index having reached the international advanced level. The machine features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance. It is especially applicable to urban infrastructure, roads or construction sites, workshop, warehouse, dock, ship deck, even inside of cabin and other places with narrow space and frequently-changed operational contents. By changing different devices, it realizes the shoveling and carrying, lifting, digging, drilling, crushing, scraping,scarification, snow blowing, deicing, road sweeping, pavement milling, and compaction operation.
Benefits & Features
1.  The body uses mechanical balancing system. Above the manipulator arm, there equipped with pull-rod and rocker arm, which helps keeping the bucket balanced when the manipulator arm is working.
2.  The body is in light-weight design. The overall weight is less than 3000kg.

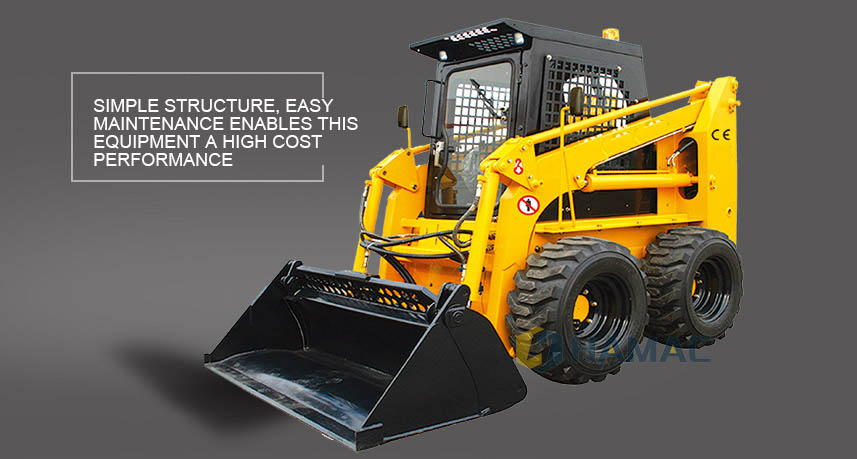

3.  It adopts mechanical pull-rod system. Simple structure, easy maintenance enables this equipment a high cost performance.

Tags: skid loader manufacturers in Caloocan track steer loader for sale in Caloocan rubber tracks for skid loader in Caloocan refractory pan mixer suppliersmack truck mixer for saleransom concrete mixer engineprice on concrete mixer

More Info
Combination Bucket
Combination Bucket
Pallet Forks
Pallet Forks
Dozer Blade Grader Leveler
Dozer Blade Grader Leveler
Snow Pusher
Snow Pusher
Grapple Bucket
Grapple Bucket
Grapple Rake
Grapple Rake
Bale Squeeze
Bale Squeeze
Grapple Rock Bucket
Grapple Rock Bucket
Hay Spear
Hay Spear
Mixer
Mixer
Digging Backhoe
Digging Backhoe
Utility Digging Backhoe
Utility Digging Backhoe
Pick Up Broom
Pick Up Broom
Tree Spade
Tree Spade
Model HC45L HC60L
Operating Load (kg) 700 850
Max. Speed (km/h) 12 12
Hydraulic flow (L/min) 62.5 75
Tire Model 10-16.5 12-16.5
Rated Power (kW) 37 45
Fuel tank Volume (L) 60 60
Self Weight (kg) 2600 3000
Bucket Volume (m³) 0.4 0.45

Structure Data:

Main data/Model HC45L HC60L
Overall operating height (mm) 3670 3690
Height to bucket hinge pin (mm) 2900 2920
height to top of cab (mm) 2030 2050
Height to bottom of level bucket(mm) 2733 2753
Overall length without bucket(mm) 2450 2630
overall length with bucket(mm) 3200 3380
Dumping angle at maximum height(° ) 40 40
Dumping height(mm) 2380 2400
Dumping reach(mm) 700 750
Rollback o bucket on ground(° ) 30 30
Rollback of bucket at full height(° ) 104 104
Wheelbase(mm) 991 991
Ground clearance(mm) 185 205
Angle of departure(° ) 20 20
Front turning radius without bucket(mm) 1168 1198
Front tuning radius(mm) 1958 1958
Rear tuning radius(mm) 1630 1728
Rear axle to bumper (mm) 1108 1208
Tread width, centerline to centerline (mm) 1450 1500
Width (mm) 1720 1800
Bucket width (mm) 1740 1820
