Based on the mature electric control reversing concrete pump, HAMAC has developed the full hydraulic control concrete pump with excellent performance by our experienced engineers who are in this field many years. Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers.

Hot Sale in stock: DHBT40 Diesel concrete pump - HBT60 Electric concrete pump - HBT15 Concrete mixing pump - 42m Concrete Boom Pump Truck - 17m Concrete Placing Boom - HBT80 Electric concrete pump - Get quote or inquiry!

Benefits & Features

1. Radiator: adopts the air-cooled plate-fin radiator to ensure that the system could operate in a maximum temperature allowed.
2. The main oil pump: adopts the German Hawe / Rexroth / Japanese Kawasaki series.
3. Lubrication system: adopts the automatic multi-point lubrication technology featuring one to one lubrication with better efficiency and the extending service life of wearing parts.
4. Power system: the power of motor series uses the well-known domestic and foreign brands: Yantai motor, Qingdao motor, Siemens Beide motor.
5. Diesel Series: power system employs the Lovol or Deutz diesel engine;
6. Electrical parts: the main electrical products adopts Schneider , LG products to the reliability of the electronic control system.
7. Hydraulic Hose Fittings: adopts the US Eaton products to ensure the safety of the hydraulic system, no leakage.
8. Large cylinder seals: Large cylinder seals adopts the US Parker products.
9. S valve: employing the manganese steel overall casting, the wearing surface adopts wear-resistant materials featuring the dual advantages of pressure and abrasion resistant.
10. Glasses plate cutting ring: glasses plates and cutting ring inlaid adopts the carbide hard to ensure a durable design.
11. Pistons: adopts the imported materials and precision machining, with excellent qualities: hydrolysis resistance, wear resistance and high temperature resistance.

Tags: Trailer Concrete Pump in Caloocan schwing concrete pump price in Caloocan transcrete pumps for sale in Caloocan concrete mixer hiring in accra rice mill silo equipment concrete mixer 0.5 m3 concrete mixer electric

More Info

Electromotor concrete pumps:

Item		Unit	S Valve Concrete Pump
			HBT30	HBT40	HBT50	HBT60			HBT80
Theoretic Concrete Delivery Volume	Low Pressure	M3/H	30	40	50	60			80
	High Pressure	M3/H	/	/	23	36			48
Concrete Delivery Pressure	Low Pressure	MPa	/	/	5.8	6.3			8.3
	High Pressure	MPa	10	10	12	13			16
Hydraulic Pressure		MPa	25	28	28	28			28
Electric Motor Speed		R/Min	1480
Main hydraulic Pump			JINDA	Kawasaki
Main Cylinder Dia./Pole Dia.× Stroke		mm	Φ80/55×845	Φ100/70×1100	Φ110/70×1300	Φ120/80×1650			Φ140/90×1800
Diameter Of Delivery Cylinder		mm	140	160/180	180	200	200
Electric Motor Power		KW	37	45	55	90	110
Capacity Of Hydraulic Oil Tank		L	200	370	370	560	560
Hopper Capacity		M3	0.4		0.55	0.6
Overall Weight		Kg	2300	3500	3600	5000		5600
Max. Delivery Distance	Vertical	M	100	160	160	160		160
	Horizontal	M	300	500	500	800		1000

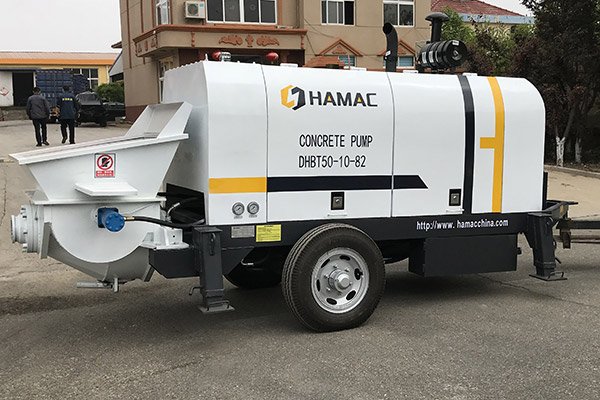

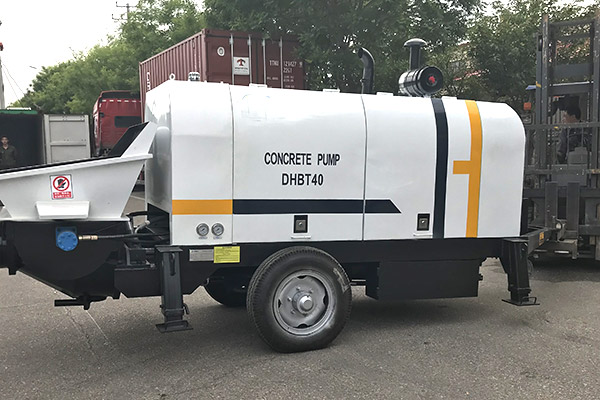

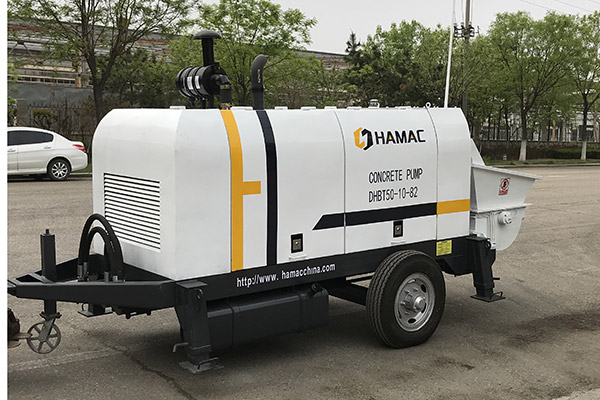

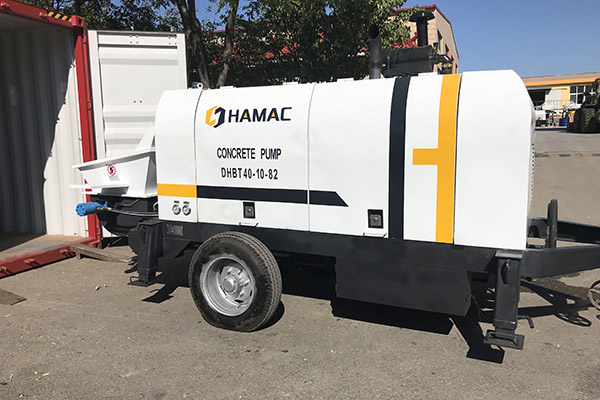

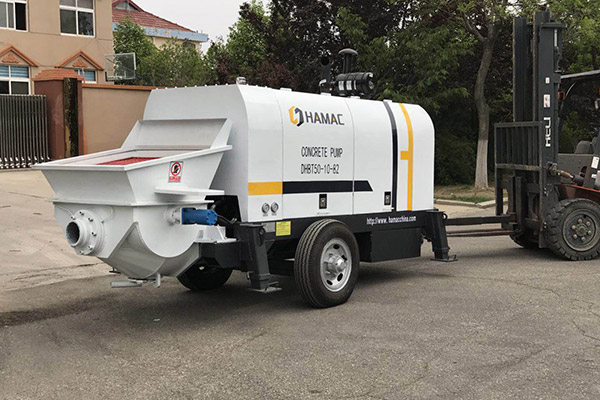

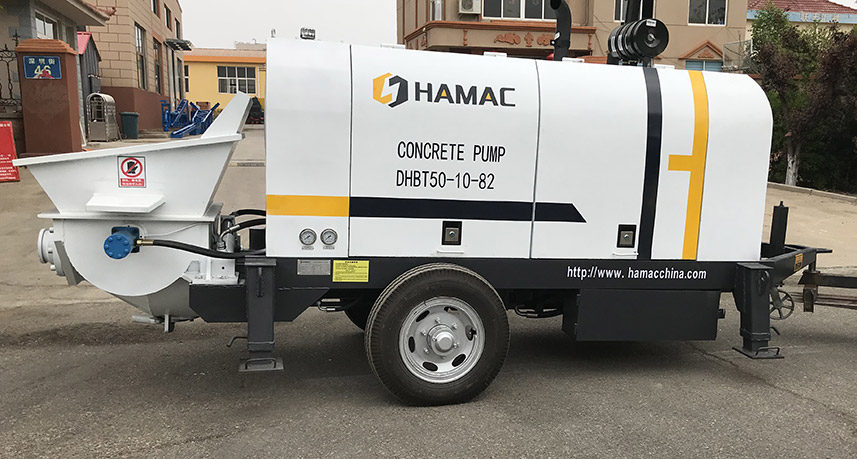

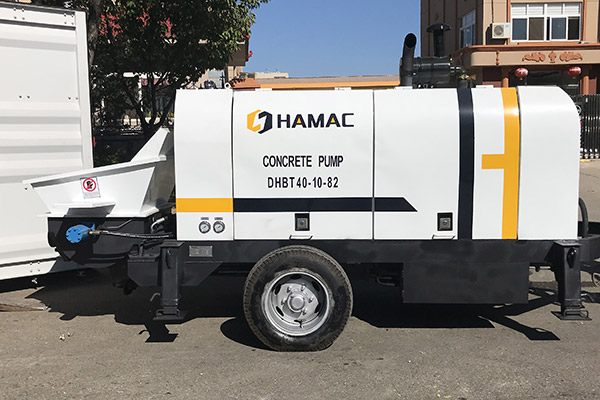

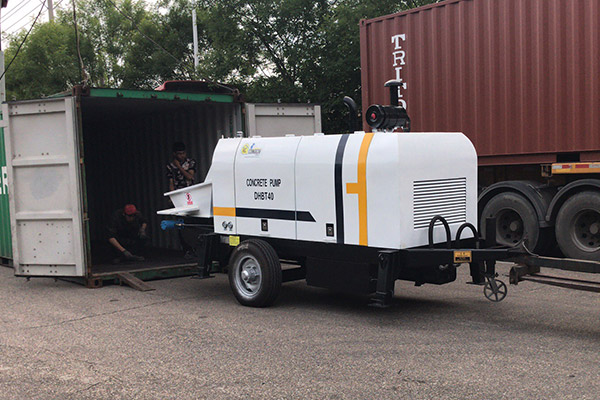

Diesel engine concrete pumps:

Item	Unit	DHBT30	DHBT40	DHBT50	DHBT60	DHBT80	DHBT90
Theoretical Capacity	M³/H	30	40	50	60	80	90
Delivery Pressure	Mpa	10	10	10	13	16	22
Max. Pump Times	Times/Min	24	20	22	22	23	23
Delivery Height	M	120	120	120	180	180	350
Delivery Distance	M	500	500	500	600	1000	1500
Distribution Valve Type		S Tube Valve	S Tube Valve	S Tube Valve	S Tube Valve	S Tube Valve	S Tube Valve
Delivery Cylinder Type	Mm	Φ140×1200	Φ180×1300	Φ180×1300	Φ200×1650	Φ200×1650	Φ200×1800
Main Oil Pump	Mm	Φ80/55×1200	Φ100/70×1300	Φ110/70×1300	Φ125/80×1650	Φ125/Φ80×1650	Φ125/Φ80×1650
Oil Tank Capacity	L	260	370	370	560	560	560
Hopper Capacity	L	400	400	400	800	800	800
Filling Height	Mm	1100	1100	1100	1400	1400	1400
Outlet Diameter	Mm	Φ125	Φ150	Φ150	Φ180	Φ180	Φ200
Delivery Pipe Inner Diameter	Mm	Φ125/Φ100	Φ125	Φ125	Φ125	Φ125	Φ125
Engine Power	Kw	56	82	82	129	129/145	199
Rated Spped	R/Min	2200	2200	2300	2300	2300	2300
Idling Speed	R/Min	800	800	800	800	800	800
Voltage	V	24V	24V	24V	24V	24V	24V
Fuel Tank	L	150	150	150	150	150	150
Hydraulic Oil-Way Type		Open	Open	Open	Open	Open	Open
Max. Oil Pressure	MPa	26	31.5	31.5	31.5	31.5	31.5
Max. Oil Pressure For Mixing System	MPa	6-8	6-8	6-8	6-8	6-8	6-8
Max. Mixing Speed	R/Min	24	24	24	24	24	24
Slump	Mm	80～200	80～200	80～200	80～200	80～200	80～200
Maximum Aggregate Size	Mm	≤30（≤20）	Aggregate 40	Pebble 50, Aggregate 40	Pebble 50, Aggregate 40	Pebble 50, Aggregate 40	Pebble 50, Aggregate 40
Overall Dimension	Mm	4970×1680 ×2580	5270×1860 ×2580	6600×1930 ×2190	6600×1930 ×2190	6600×1930 ×2190	6800×2100 ×2350
Wight	Kg	3500	4500	4500	6500	6800	7000
Towing Speed	Km/H	≤8	≤8	≤8	≤8	≤8	≤8
