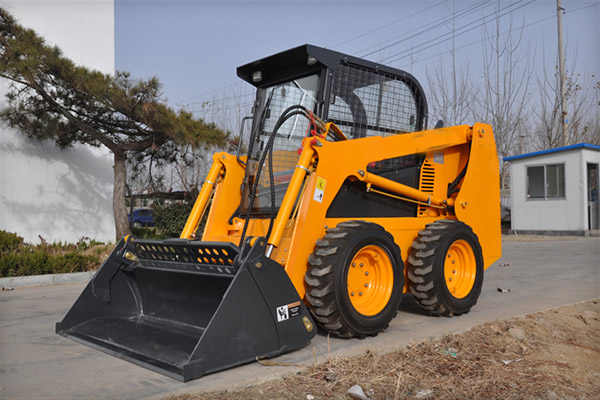

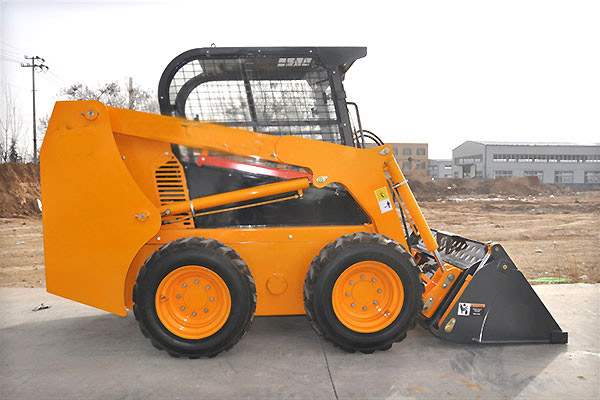

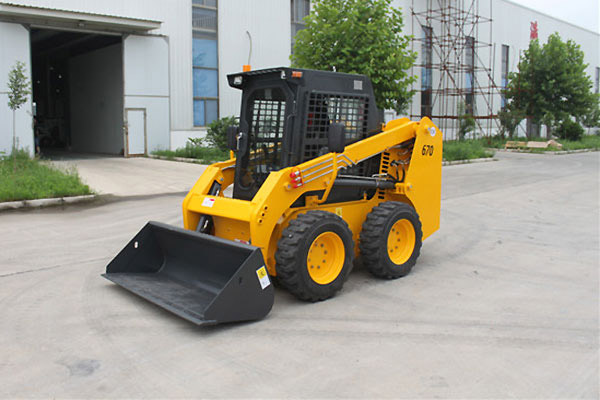

Z series Wheeled Skid Steer Loader

Skid Steer Loaders

● Products :Z series Wheeled Skid Steer Loader

● Type :Skid Steer Loaders

● Brand :HAMAC

● Origin :China

If you want to know more details, please contact us, we will reply you as soon as possible.

Product Introduction
Z series Wheeled Skid Steer Loader is a new generation of small multi-function equipment integrating mechanics, electronics and hydraulics under the independent research and development of HAMAC, with every performance index having reached the international advanced level. The machine features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance. It is especially applicable to urban infrastructure, roads or construction sites, workshop, warehouse, dock, ship deck, even inside of cabin and other places with narrow space and frequently-changed operational contents. By changing different devices, it realizes the shoveling and carrying, lifting, digging, drilling, crushing, scraping,scarification, snow blowing, deicing, road sweeping, pavement milling, and compaction operation.
Benefits & Features

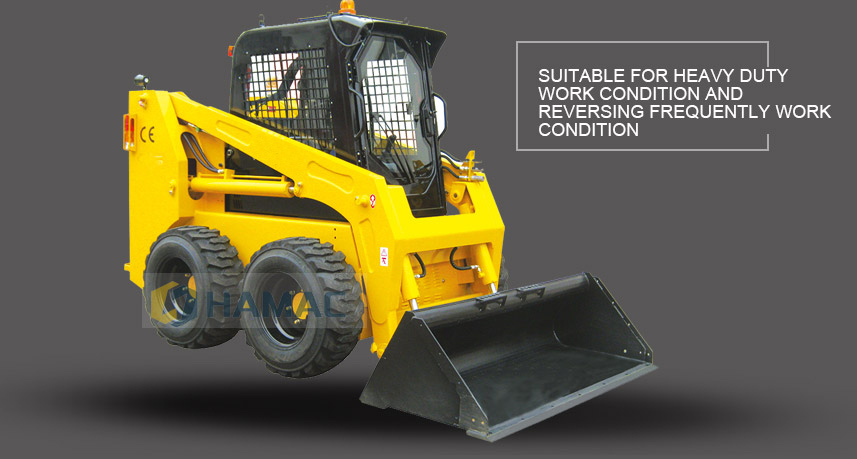

1. Z series is equipped with special gear transmission system, an unique design in China. The driving motor is high-speed plunger motor, reduction gear system is heavy duty type, longer service life. It is suitable for heavy duty work condition and reversing frequently work condition;
2. Powerful diesel engine equipped with transfer case, can be equipped with big power main pump and big flow gear pump. So the loader will provide stronger tractive force and high flow output for attachment;

Tags: tracks for wheeled skid steer in Caloocan caterpillar track skid steer for sale in Caloocan skid steer rubber tracks suppliers in Caloocan concrete mixer machine in Quezonreed a40hp concrete pump salei input pada mixer concretetrailer concrete mixer for sale in Kayanta

More Info
Combination Bucket
Combination Bucket
Pallet Forks
Pallet Forks
Dozer Blade Grader Leveler
Dozer Blade Grader Leveler
Snow Pusher
Snow Pusher
Grapple Bucket
Grapple Bucket
Grapple Rake
Grapple Rake
Bale Squeeze
Bale Squeeze
Grapple Rock Bucket
Grapple Rock Bucket
Hay Spear
Hay Spear
Mixer
Mixer
Digging Backhoe
Digging Backhoe
Utility Digging Backhoe
Utility Digging Backhoe

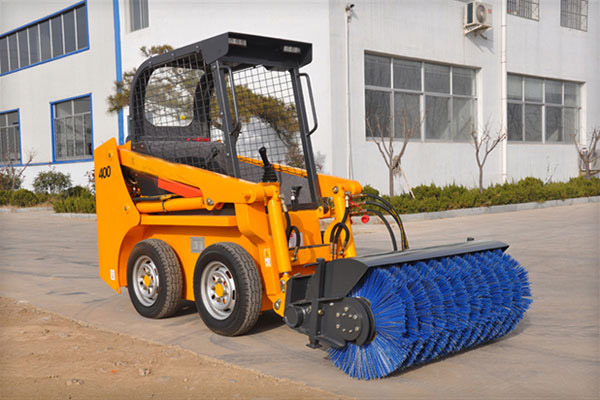

Pick Up Broom
Pick Up Broom
Tree Spade
Tree Spade
Model HC70Z HC100Z
Operating Load (kg) 1050 1200
Max. Speed (km/h) 12 12/18
Hydraulic flow (L/min) 75 75
Tire Model 12-16.5 12-16.5
Rated Power (kW) 55 74
Fuel tank Volume (L) 75 90
Self Weight (kg) 3500 3550
Bucket Volume (m³) 0.5 0.55

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Structure Data:

Main data/Model HC70Z HC100Z
Overall operating height (mm) 4070 4070
Height to bucket hinge pin (mm) 3150 3150
height to top of cab (mm) 2160 2160
Height to bottom of level bucket(mm) 2983 2983
Overall length without bucket(mm) 2880 2880
overall length with bucket(mm) 3580 3580
Dumping angle at maximum height(° ) 40 40
Dumping height(mm) 2450 2450
Dumping reach(mm) 700 750
Rollback o bucket on ground(° ) 30 30
Rollback of bucket at full height(° ) 104 104
Wheelbase(mm) 1115 1185
Ground clearance(mm) 205 205
Angle of departure(° ) 20 20
Front turning radius without bucket(mm) 1250 1278
Front tuning radius(mm) 2112 2144
Rear tuning radius(mm) 1774 1857
Rear axle to bumper (mm) 1082 1082
Tread width, centerline to centerline (mm) 1500 1500
Width (mm) 1880 1880
Bucket width (mm) 1880 1880
