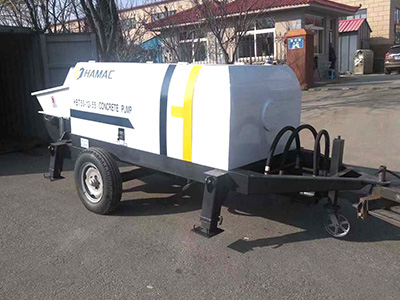

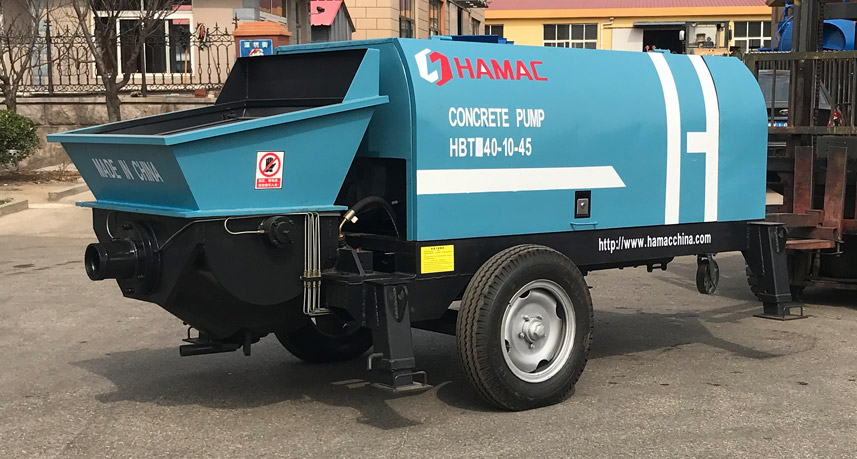

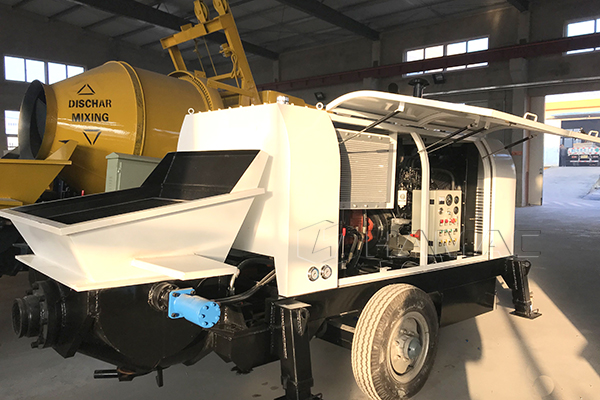

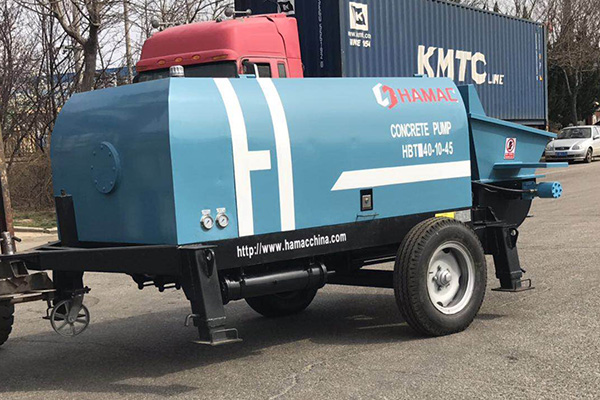

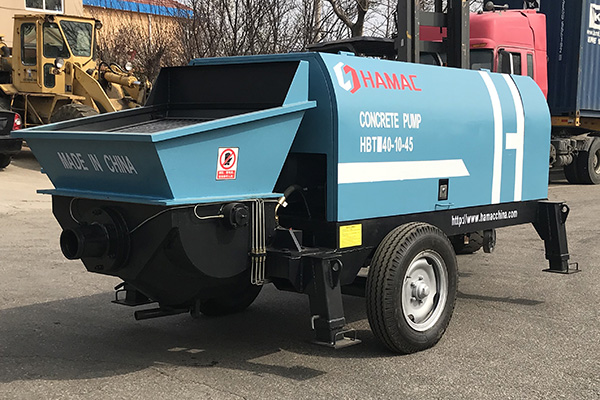

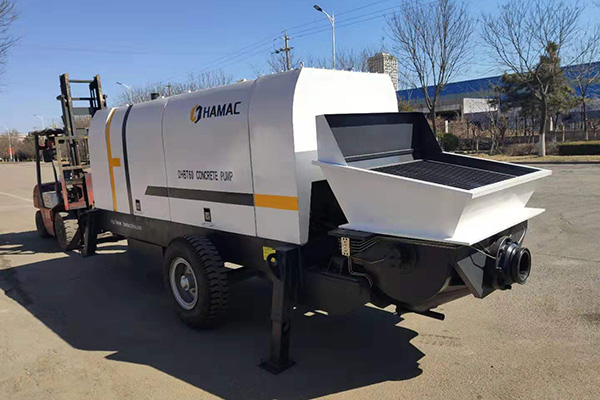

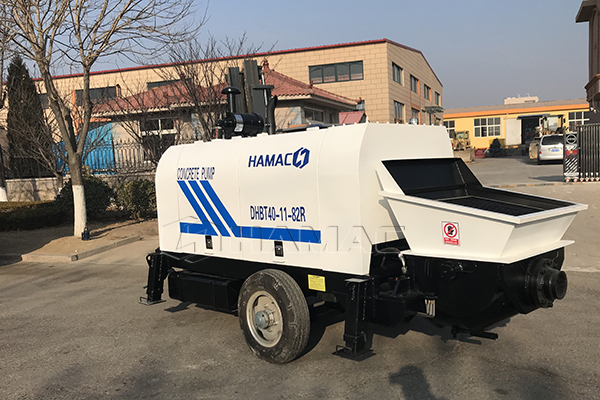

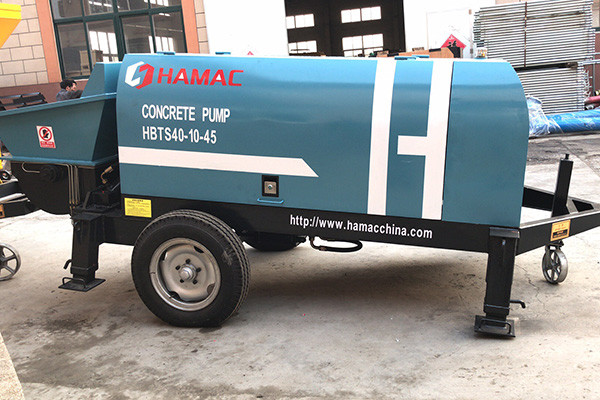

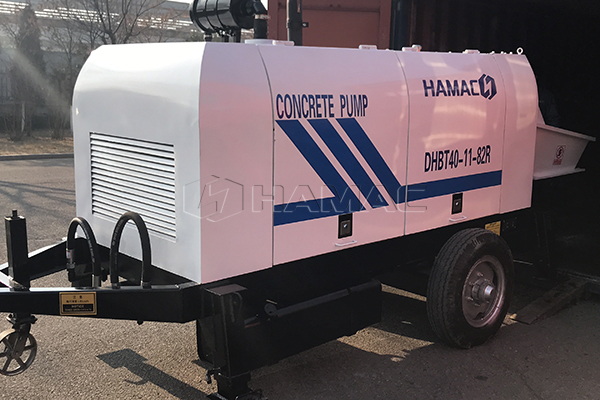

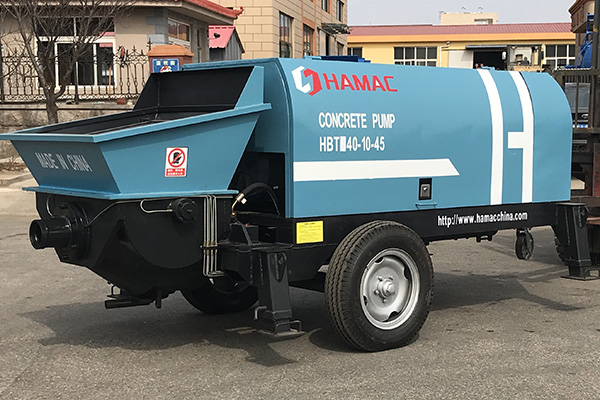

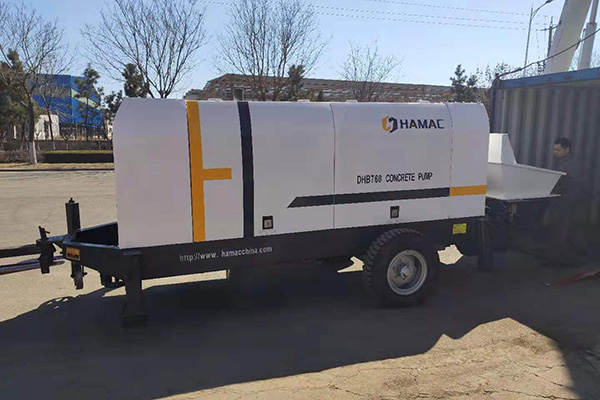

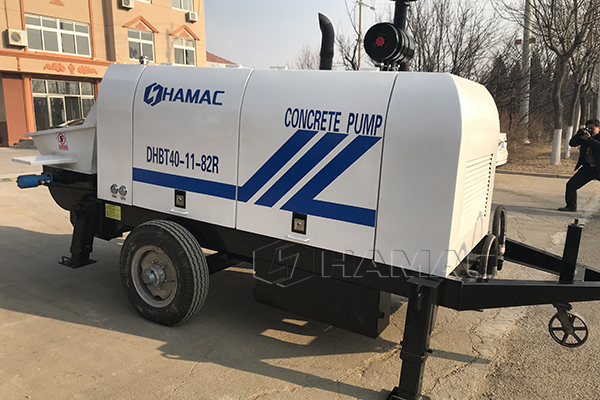

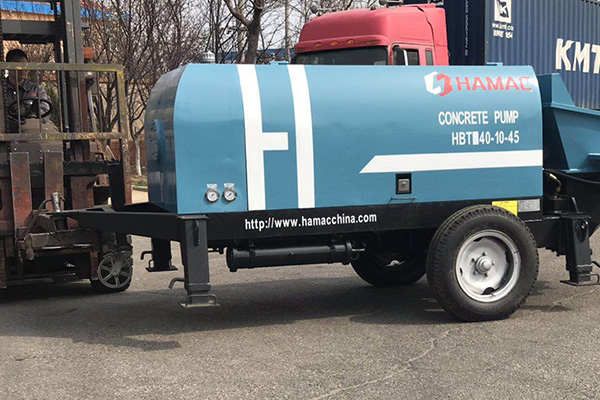

Electric Concrete Pump(HBT Series)

1. Radiator: adopts the air-cooled plate-fin radiator to ensure that the system could operate in a maximum temperature allowed.
2. The main oil pump: adopts the German Hawe / Rexroth / Japanese Kawasaki series.
3. Lubrication system: adopts the automatic multi-point lubrication technology featuring one to one lubrication with better efficiency and the extending service life of wearing parts.
4. Power system: the power of motor series uses the well-known domestic and foreign brands: Yantai motor, Qingdao motor, Siemens Beide motor.

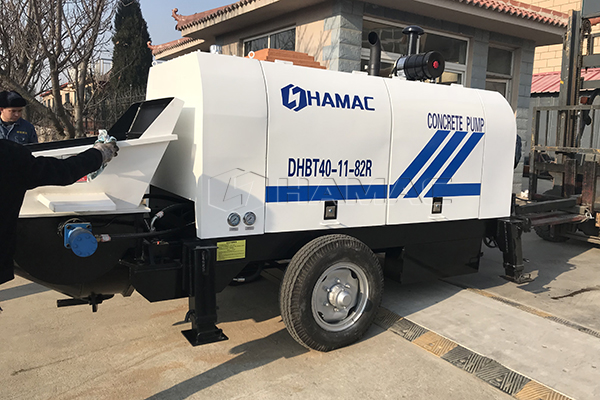

5. Diesel Series: power system employs the Lovol or Deutz diesel engine;
6. Electrical parts: the main electrical products adopts Schneider , LG products to the reliability of the electronic control system.
7. Hydraulic Hose Fittings: adopts the US Eaton products to ensure the safety of the hydraulic system, no leakage.
8. Large cylinder seals: Large cylinder seals adopts the US Parker products.
9. S valve: employing the manganese steel overall casting, the wearing surface adopts wear-resistant materials featuring the dual advantages of pressure and abrasion resistant.
10. Glasses plate cutting ring: glasses plates and cutting ring inlaid adopts the carbide hard to ensure a durable design.
11. Pistons: adopts the imported materials and precision machining, with excellent qualities: hydrolysis resistance, wear resistance and high temperature resistance.

Tags: concrete pump truck in Davao portable concrete pump for sale in Iloilo Electromotor concrete pumps in Mandawi shacman transit mixerremote control skid loaderdaiichi concrete pumpsconcrete pump car specs

Item		Unit	S Valve Concrete Pump
			HBT30	HBT40	HBT50	HBT60			HBT80
Theoretic Concrete Delivery Volume	Low Pressure	M3/H	30	40	50	60			80
	High Pressure	M3/H	/	/	23	36			48
Concrete Delivery Pressure	Low Pressure	MPa	/	/	5.8	6.3			8.3
	High Pressure	MPa	10	10	12	13			16
Hydraulic Pressure		MPa	25	28	28	28			28
Electric Motor Speed		R/Min	1480
Main hydraulic Pump			JINDA	Kawasaki
Main Cylinder Dia./Pole Dia.× Stroke		mm	Φ80/55×845	Φ100/70×1100	Φ110/70×1300	Φ120/80×1650			Φ140/90×1800
Diameter Of Delivery Cylinder		mm	140	160/180	180	200	200
Electric Motor Power		KW	37	45	55	90	110
Capacity Of Hydraulic Oil Tank		L	200	370	370	560	560
Hopper Capacity		M3	0.4		0.55	0.6
Overall Weight		Kg	2300	3500	3600	5000		5600
Max. Delivery Distance	Vertical	M	100	160	160	160		160
	Horizontal	M	300	500	500	800		1000
