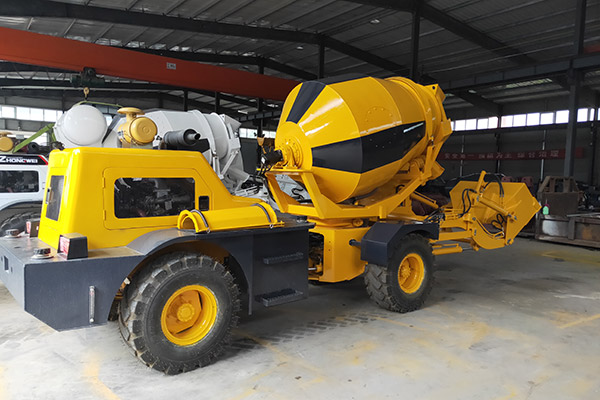

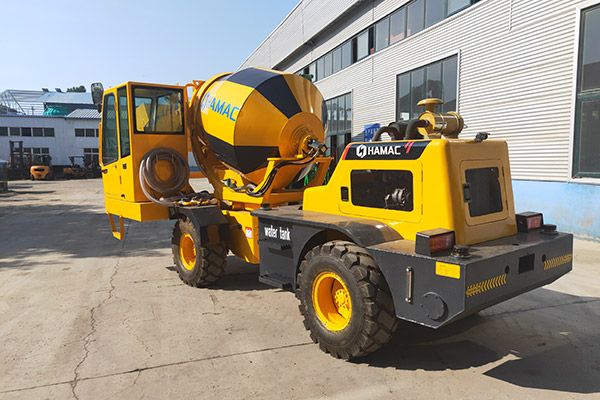

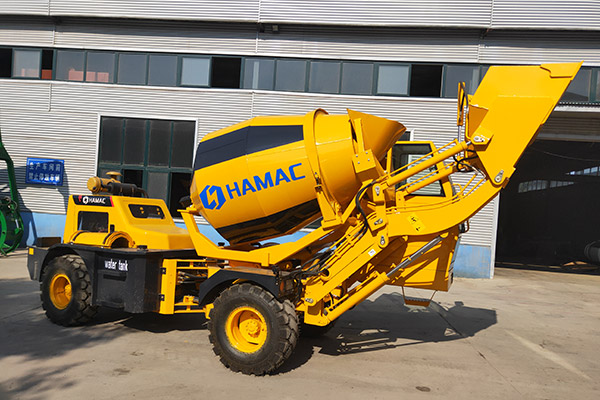

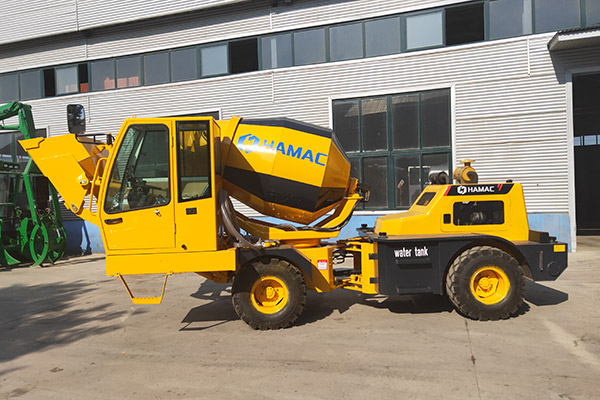

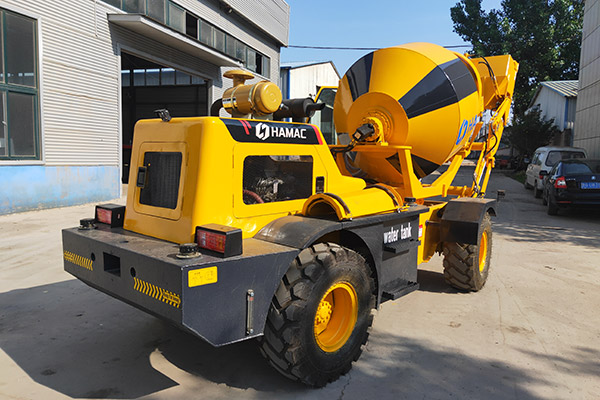

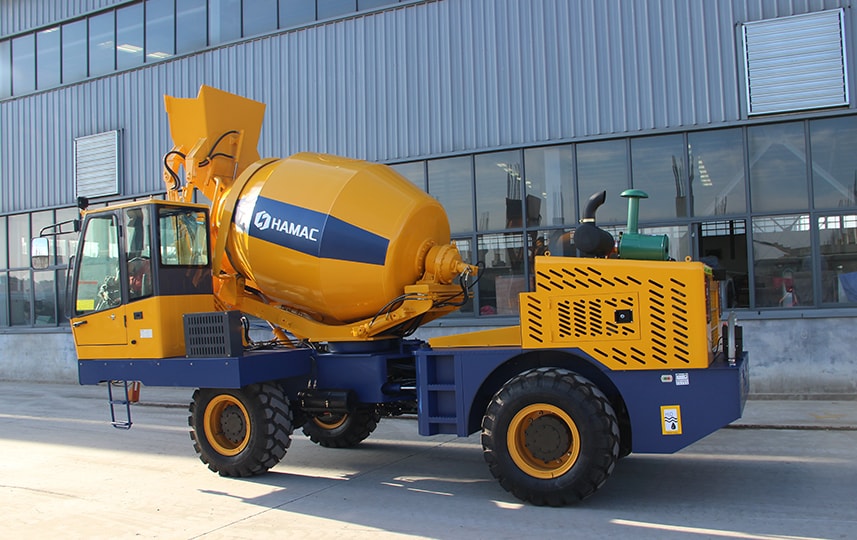

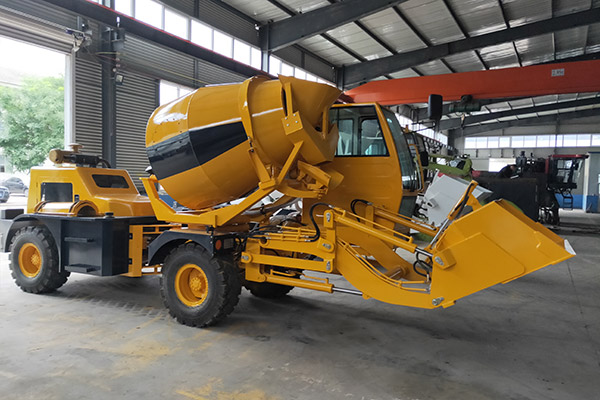

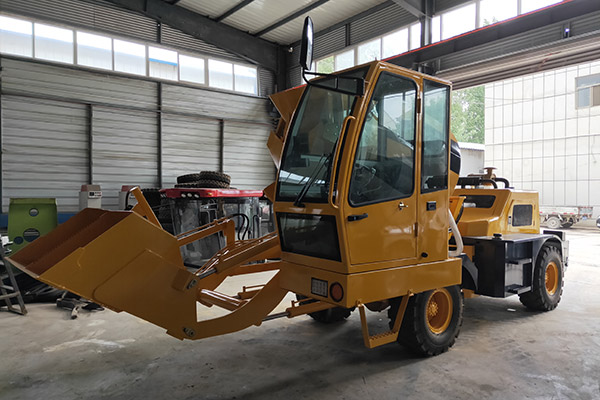

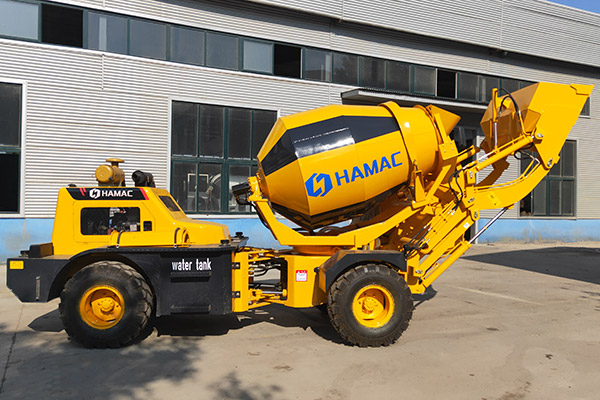

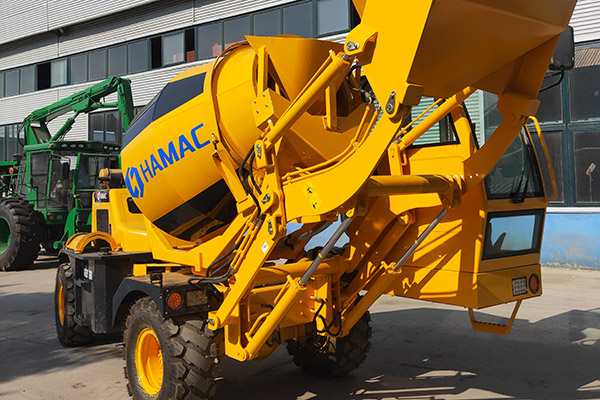

HMC200 Self-loading Concrete Mixer

SCOPE OF APPLICATION

1. House and workshop in remote areas;
2. concrete road;
3. Water canal;
4. Infrastructure in remote areas;
5. Reservoir dam project

Advantages:

1. It combines loading, mixing, transit and discharging;
2.  Famous brand engine, YUCHAI and CUMMINS as options;
3. An electronic weighting system and printer is available, The weighing scales monitor is at the operator's convenience to certify 100% quality concrete is produced.
4.  Water pump has the ability to draw water from any water source available (ponds, Lakes, rivers, water containers, etc.) to its water tank. From its tank, the water is pumped through the flow meter, making sure the right amount of water is added, to the drum.
5. 270 degree rotation mixing drum, it can discharge the concrete in different directions;
6.  Equipped with famous brand hydraulic system for stable work performance;
7.  4*4 drive mode, it is suitable for different rough working conditions;
8. Equipped with washing system, you can make the machine clean immediately after finishing working;
9.  Well-decorated cabin for driver, equipped with air conditioner; more comfortable;
10. All the functions controlled by joystick and buttons,
11. 4 wheels steering and 2 wheels steering optional;
12.  It can be delivered by the container, save cost for sea freight.

Tags: self loading pan mixer in Raspinas ready mixed concrete truck in Raspinas portable cement mixers in Raspinas skid loaders for salejunjin 38 meters concrete pumpready mix plant how it workshomemade concrete mixer plans

1.5m3 Self-loading concrete mixer Technical Data
No.	Name	Detailed information
1	Mixing system	Drum geometric volume：2.0m3，Concrete drum output：1.5m3/batch，Double mixing screws， Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed dependends on the speed of  diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for discharging on the four sides of the vehicle.
2	Max. capacity	6m3/h
3	Transmission	Diesel engine drives the torque converter, there is a transmission shaft installed on it to drive the transmission box which will be used to driven the four wheels
	High and low speed	flexible shaft shift gear
4	Running mode	Hydraulic running
5	Joymix	All hydraulic functions of shovel controlled by a single fully servo controlled Joystick.
6	Hand shank	To controll the mixing drum rorate 270°
7	Diesel engine	YUNNEI490GBZ    3200r/min   Rated power：55kw
8	Hydraulic pump	Double gears2032/2032
9	Loading shovel	Effective capacity per load 0.39m3, complete with hydraulic opening gate.
10	Discharging chute	Slewing and mechanically tilting. Fitted with two pins easily detachable to increase the discharge height.
11	Water tank	330 L
12	Tanks	Fuel tank：95 L    Hydraulic oil tank: 95 L
13	Tyre	Off road industrial type 20.5/70-16
14	Weighing system	Electronic system,“Load cells” acting on the arm, display and printer in the cab.
15	Servicing brake	vacuum servo brake
16	Parking brake	automatically air-cut brake
17	Water supply system	Self-contained. Hydraulic driven water pump
18	Electric system	24V
19	Overall dimension	Length: 6300mm;Width: 2300mm;Height: 2550 mm；Wheel base：2230 mm;Tread：1470mm
20	Running speed	Low speed:0-8km/h；High speed 8-25km/h；
21	Min. Turning radius	4850 mm
22	Weight	4800kgs

Note: Our products are being updated constantly, all rights reserved by HAMAC.
