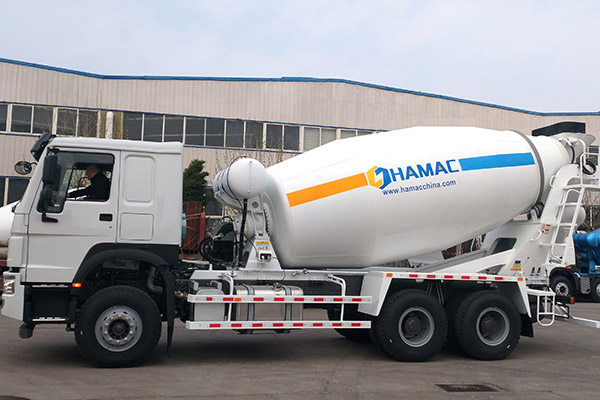

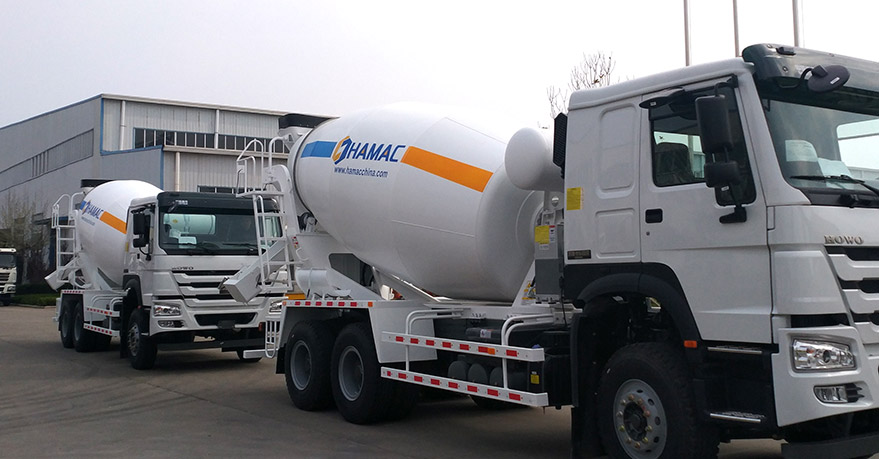

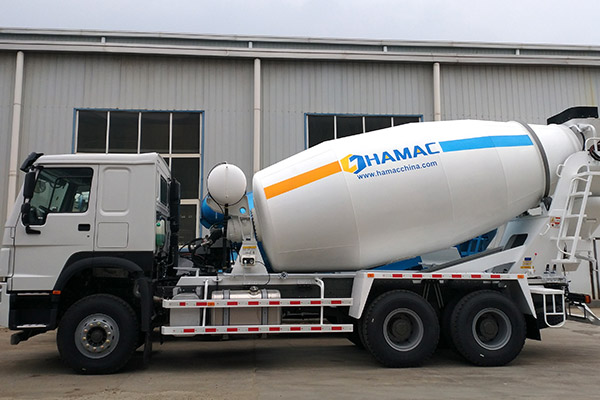

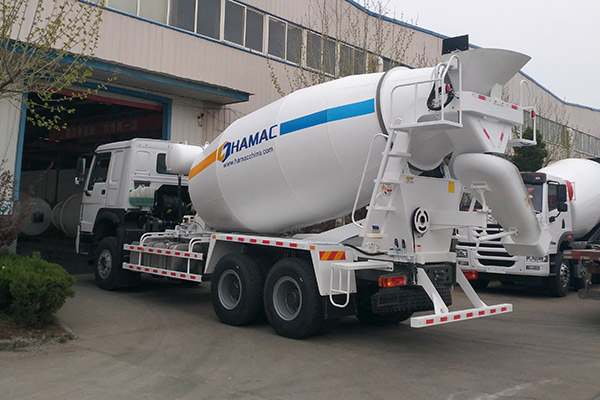

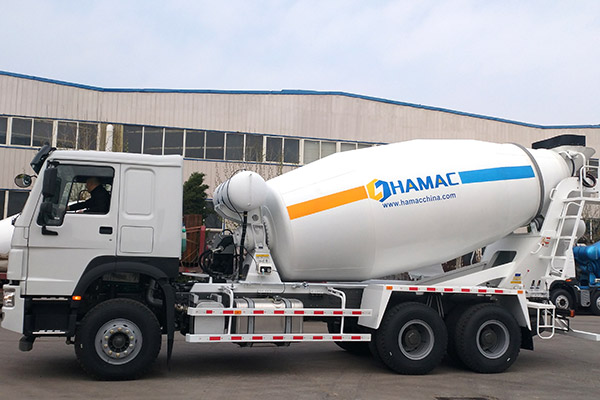

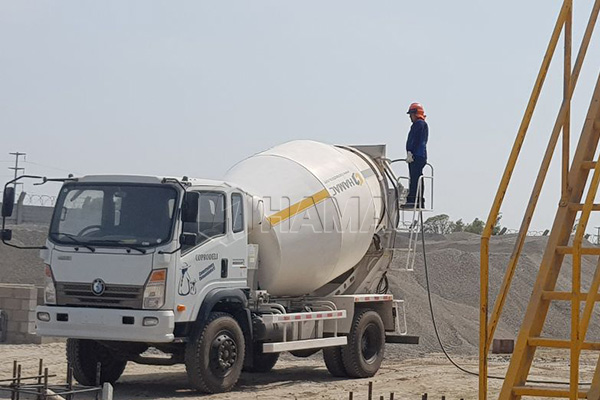

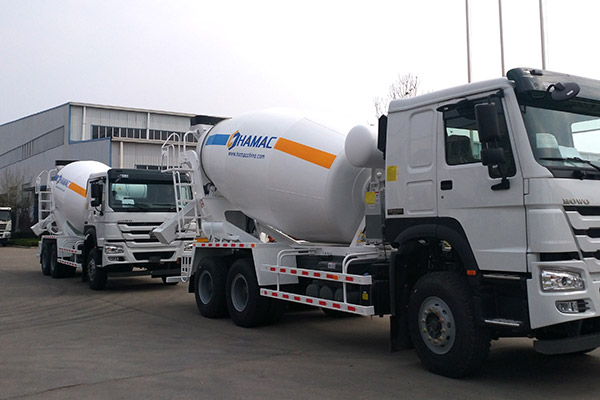

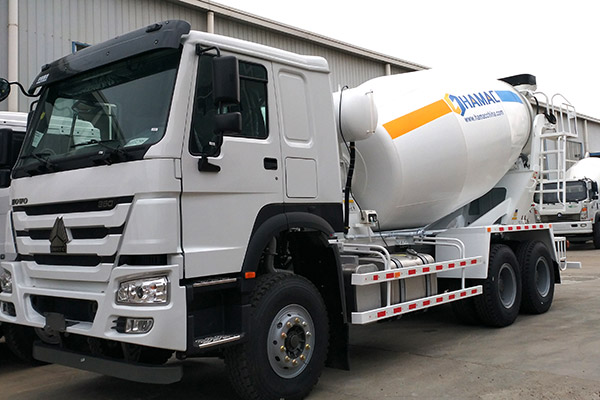

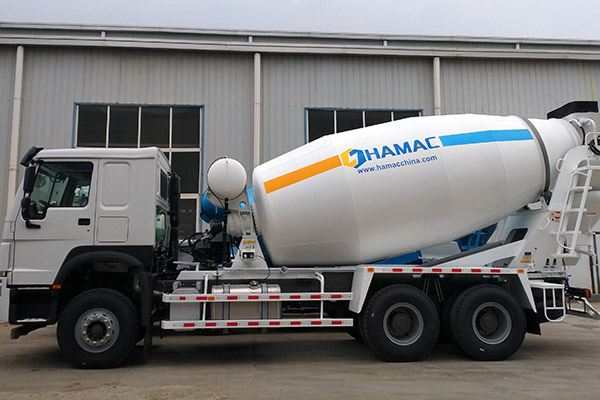

10cbm Concrete Truck Mixer

1. The whole truck is convenient and stable with strong intensity. Sperical purpose chassis is specially designed for rural market, even narrow country road can be easily handled;
2. Concrete mixing tank with superior performance, optimized design of concrete mixing tank, improve loading ability, mixing on average without separation;
3. The blade has unique wear-resisting protection structure, improving blade service lift 80%;
4. The design of low angle of inclination. Center of gravity is lower than similar concrete transit mixer at 5%, safety factory higher 10%;



1. The whole truck is convenient and stable with strong intensity. Special purpose chassis is specially designed for rural market, even narrow country road can be easily handled;
2. Concrete mixing tank with superior performance, optimized design of concrete mixing tank, improve loading ability, mixing on average without separation;
3. The blade has unique wear-resisting protection structure, improving blade service lift 80%;
4. The design of low angle of inclination Center of gravity is lower than similar concrete transit mixer at 5%, safety facto higher 10%

Tags: Self-loading Concrete Mixing Truck in baguio 4m3 Concrete Mixing Truck in baguio 6m3 Concrete Mixing Truck in baguio redland concrete mixersdesain batching plant manualmake your own concrete pumpready mix plant peliyagoda

Overall parameter( Concrete Transit Mixing Truck 10m³)
Overall dimension	9400x2500x3850mm（Approx）
Kerb weight	14500kg（Approx）

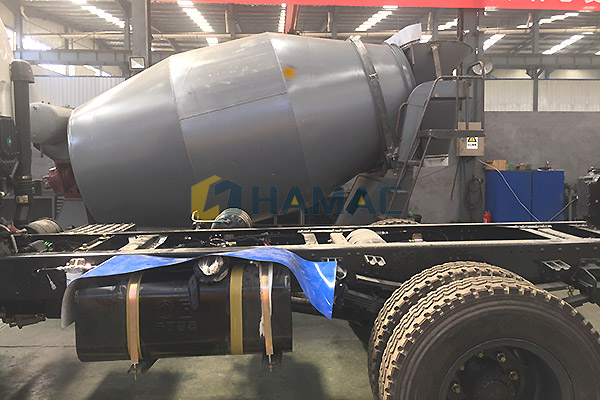

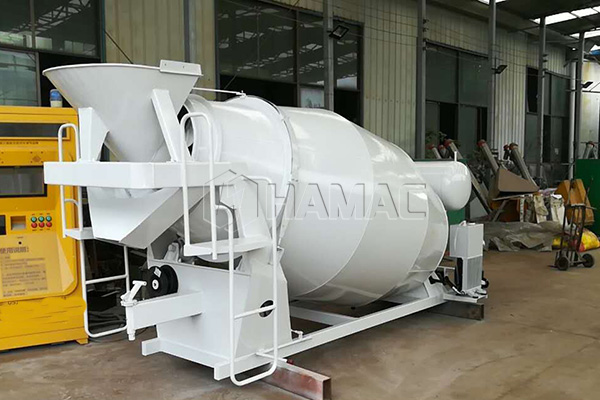

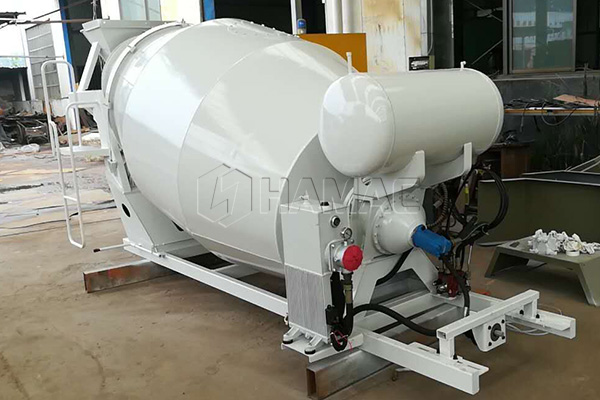

Mixing Drum parameter

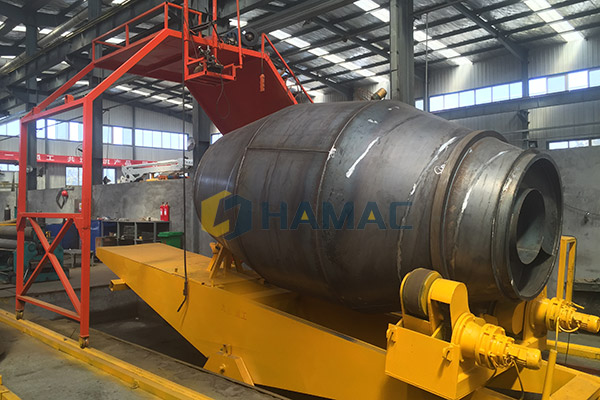

Mixing drum material	High quality wear-resistance steel
	Model:Q345
	Drum body thickness: 5mm, End cover thickness:6mm
Agitating capacity	10m3
Drum overall dimension(with frame)	7100*2500*2730mm
Charging rate	≥3 m3/min

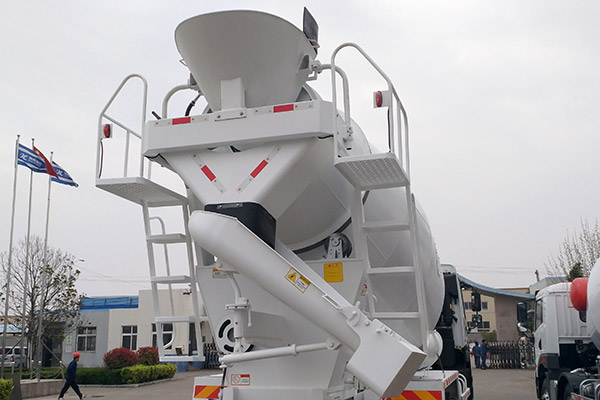

Top feed hopper dimension	≥650 mm
Discharging rate	≥2 m3/min
Residual rate	≤0.5%
Water supply	Baric water supply system
Water tank capacity	450L
Radiator	18L
Reduction gear	TOP T68 Reducer, Italy Brand
Hydraulic pump	EATON 54, American Brand
Hydraulic motor	EATON 54, American Brand
Accessory	Tool box
Chassis parameter
Chassis Brand	SINOTRUCK chassis
Wheelbase (mm)	3825+1350
Drive model	Left hand drive
Quantity of axis	3
Engine	SINOTRUCK  D10.34-40
Engine Power	340hp
Emission Standard	EUR IV
Tire	12.00R20

Note: Our products are updated constantly, if there is any data discrepancy, please refer to the actual product.
