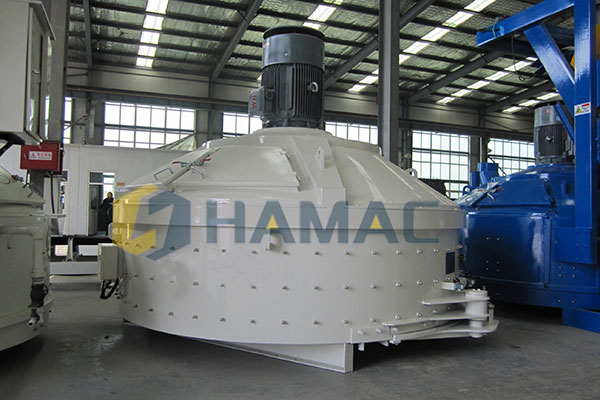

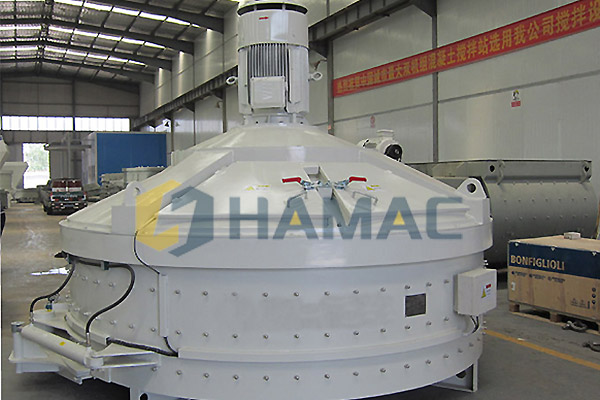

MP Planetary Concrete Mixer

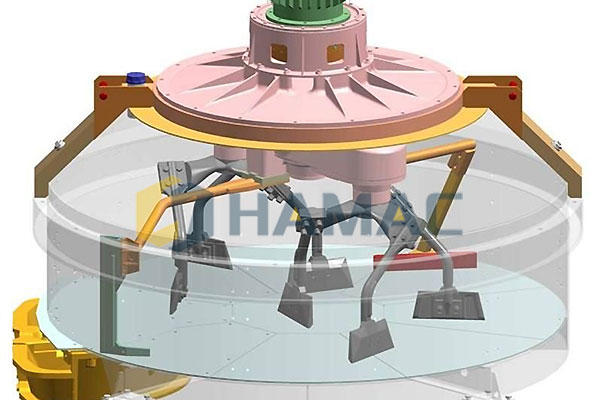

1. Motion track : The revolution and rotation speed of the blades have been extensively studied and tested to give the mixer a high output without causing the segregation of materials with diffrernt grain size and weight.the movement of the material inside the trough is smooth and continuous.As shown in the picture,the blades track covers the whole bottom of the trough after a cycle.
2. Gearing system: The power transmisssion is realized by a hard surface gear which is designed specially by our company.Fluid clutch is installed between the motor and the gearbox. It can keep the mixer start up normally even in the full load condition.The driving force provided by gearbox drives the mixing arms to do not only have a rotation but also has a revolution,the more complex of the motin track,the more turbulent the mixing is,and then the mixer works more effectively ,its mixing more homogeneos.

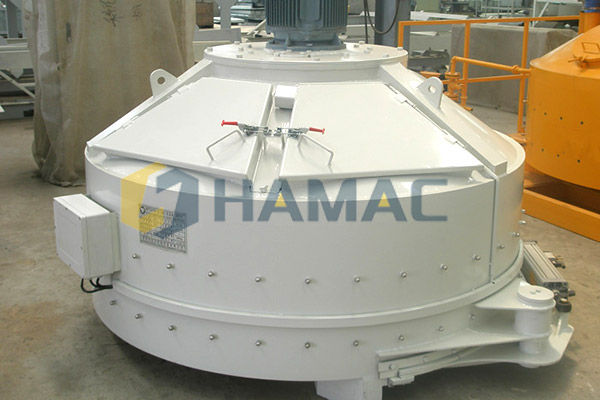

3. The security of the maintenance door device: cording to market demands, reliable high-sensitive security switches are used in the maintaining door to make the maintaining work safe and convenient.

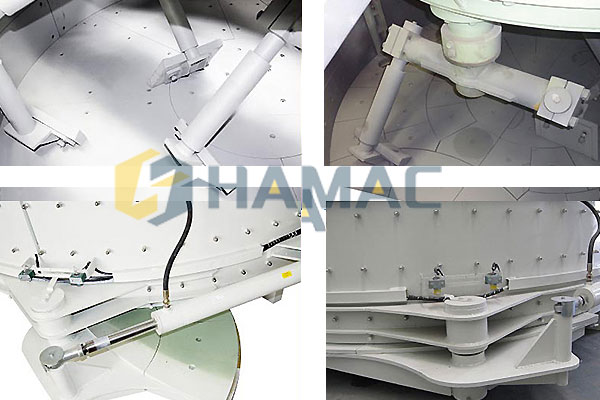

4. Discharging device: According to the different demands of customers, the discharging door can be opened by hydraulic, pneumatic or by hands. The number of the discharging door is three at most .And there is special sealing device on the discharging door to ensure the sealing reliable.
5. Security device of lifting hopper: The security device of skip hopper safeguards against head-clashing when the hopper is climbing up.

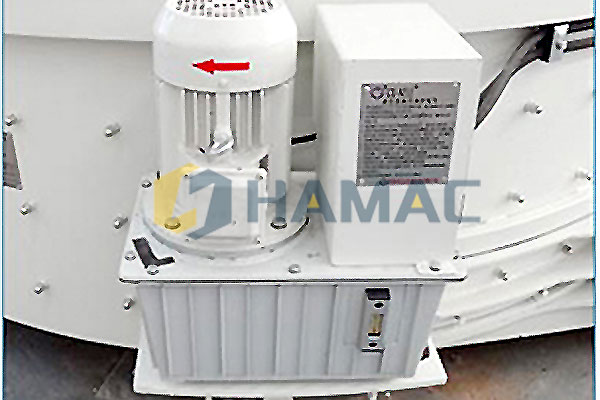

6. Hydraulic pump station: Special designed hydraulic power unit is used to provide power for more than one discharging gates. On emergency, these discharging gates can be opened by hand.

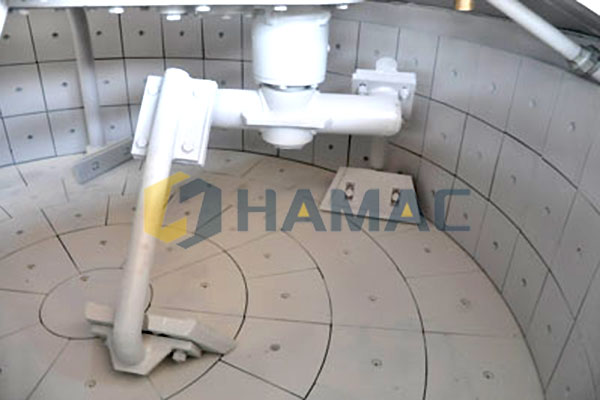

7. Mixing device: Driven by the gearing system, the blades fixed on mixing arms and the scarpers arms crush and overturn the material to complete the compelling mixing.

Tags: Pan Concrete Mixer in Manila Concrete Mixers application in Manila Planetary mixers in Manila what is a batching plantmixer besar untuk rotiConcrete line pumpconcrete pump without truck

Item	Type
	MP250	MP330	MP500	MP750	MP1000	MP1500	MP2000	MP2500	MP3000
Intput capacity(L)	375	500	750	1125	1500	2250	3000	3750	4500
Output capacity(L)	250	330	500	750	1000	1500	2000	2500	3000
Output capacity(kg)	600	800	1200	1800	2400	3600	4800	6000	7200
Diameter of mixing Trough(mm)	1300	1540	1900	2192	2496	2796	3100	3400	3400
Mixing power(kw)	11	15	18.5	30	37	55	75	90	110
Discharging power(kw)	2.2	2.2	2.2	2.2	3	3	4	4	4
Scraper(nr)	1/2	1/2	1/2	1/3	2/4	2/4	3/6	3/6	3/9
Paddle	1	1	1	1	1	1	1	1	1
Discharging paddle	-	-	-	1	1	1	2	2	2
Weight(kg)	1200	1700	2000	3500	6000	7000	8500	10500	11000
mm Dimension (L*W*H)	1570 x1480  x1750	1862 x1850 x1855	2220 x2071 x1880	2550 x2295 x2195	2893 x2606 x2217	3223 x2906 x2425	3625 x3235 x2630	3893 x3555 x2695	3893 x3555 x2975
Lifting power(kw)	3	4	4	7.5	11	15	18.5	-	-

Note: Our products are being updated constantly, all rights reserved by HAMAC.
