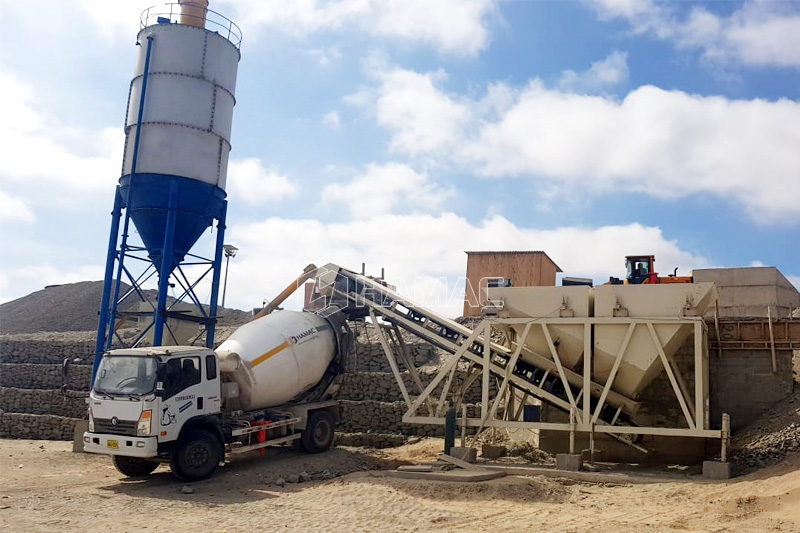

![Dry batching plant manufactured by HAMAC in Peru](/img/concrete-plant/dry-batching-plant-1.jpg)
Concrete batching plant without mixer/ Dry Batching Plant
HAMAC Dry batching plant is a full automatic stationary dry type concrete batching plant does not include a mixer. Ingredients of the concrete are transferred directly to the truck mixer after weighing without a mixing process. HAMAC Dry mixing plant is preferred by the users when the application area of the concrete is very far from the concrete plant location.
![Dry batching plant manufactured by HAMAC in Peru](/img/concrete-plant/dry-batching-plant-1.jpg)
![Dry batching plant manufactured by HAMAC in Jamaica](/img/concrete-plant/dry-batching-plant-2.jpg)

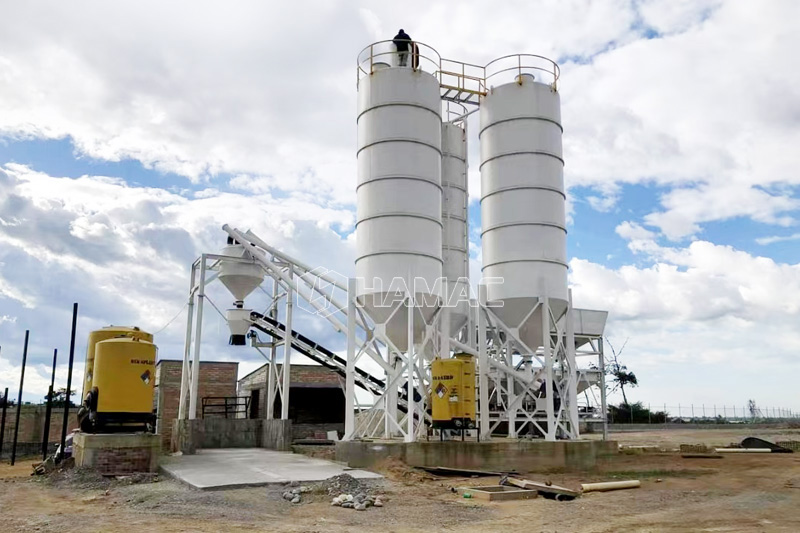

Dry batching plant manufactured by HAMAC in Jamaica
HAMAC dry type concrete plant can be equipped with different size of cement silos from 50 to 500 tons storage capacity according to the needs and conditions of our clients’ projects. If the cement is supplied in bags, the cement is filled to the silos easily by means of a big bag opening and silo charging systems which can be integrated to the dry mixing plant.
![Different size cement silos to stock the cement](/img/concrete-plant/dry-batching-plant-3.jpg)

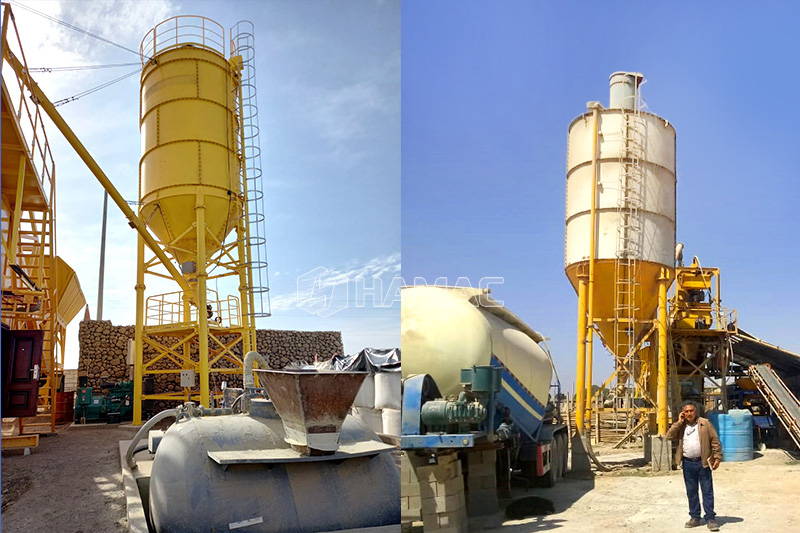

Different size cement silos to stock the cement
![BIGBAG cement is fed directly by the hopper and screw conveyor](/img/concrete-plant/dry-batching-plant-4.jpg)

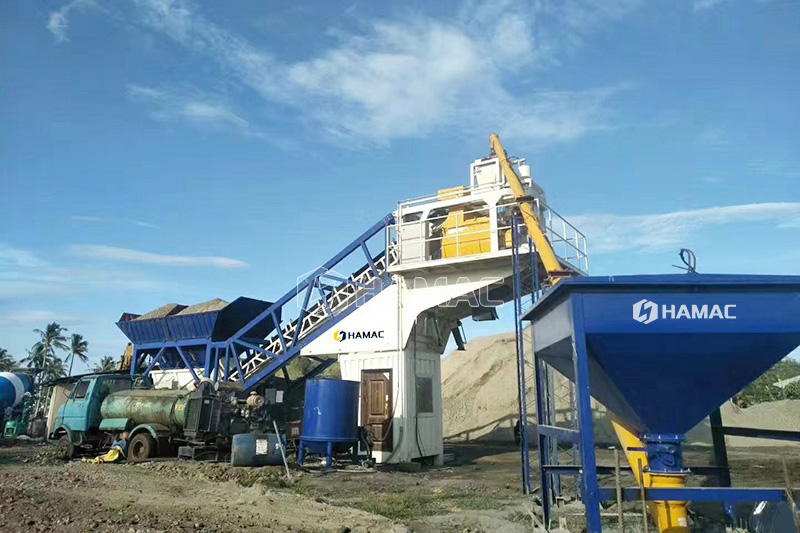

BIGBAG cement is fed directly by the hopper and screw conveyor
HAMAC knows very well that the climate conditions have major affects on the quality of concrete. While the dry type concrete batching plant in cold-climate regions such as Russia, Kazakhstan, Ukraine, Northern Europe etc. are being heated by hot vapor generators and insulated panels, the concrete water to be used in dry type concrete plants in hot-regions such as middle east, GCC or African countries such as Kenya, Ethiopia, Nigeria etc is cooled by water chillers to make the water cold.
Aggregate pre-feeding systems are our alternative solutions to the loading ramps which are necessary for charging the hoppers by wheel loaders. In case of using aggregate pre-feeding systems, requirement of loading ramp is removed.
Different Layouts and site plans for dry type concrete plant are applied according to the conditions of the field where the concrete plant is to be installed and in case of the field sizes are limited, aggregates is transferred by skip hoist system instead of belt conveyors.
Dry type batching plant is equipped with high-tech automation system including top class SIEMENS – SCHNEIDER brand electronic components and PLC . The whole system is controlled through an advanced software which is sophisticated features and user friendly interface.
![Control panel of HAMAC concrete batching plant](/img/concrete-plant/dry-batching-plant-5.jpg)

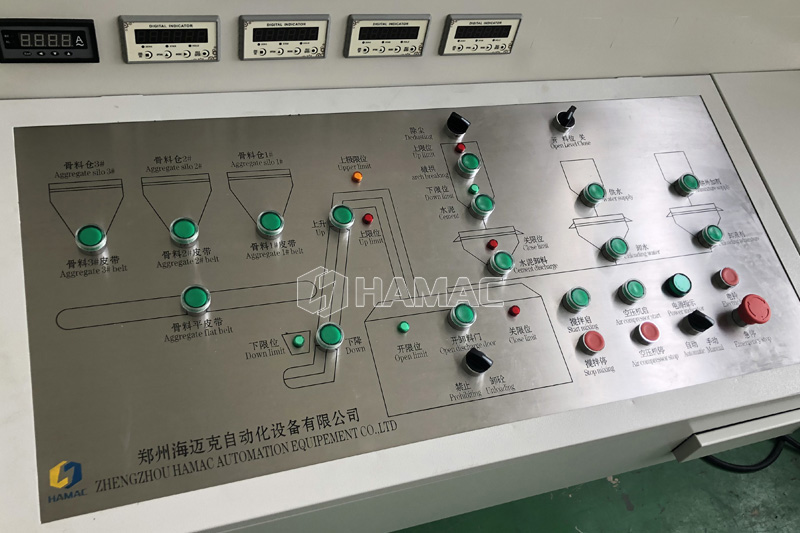

Control panel of HAMAC concrete batching plant
![Electrical components of HAMAC concrete batching plant](/img/concrete-plant/dry-batching-plant-6.jpg)

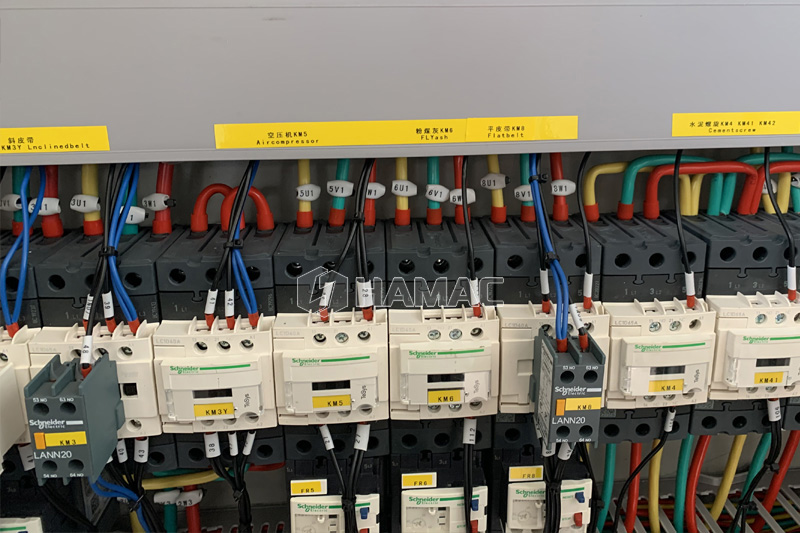

Electrical components of HAMAC concrete batching plant
For more information, please contact our expert or send us an email to get a solution.
