Mobile Concrete Batching Plant
The mobile concrete batching plant is a concrete mixing equipment that integrates the material storage, weighing, conveying, mixing, discharging and automatic control systems of the traditional stable concrete batching plant into a single trailer unit; it is as same as the stable automatic concrete batching plant. All the production processes, operation methods, and maintenance methods are exactly as same as the stationary concrete batching plant; at the same time, it has the unique advantages of flexible movement, quick and easy disassembly and assembly, and simple storage management; it is the best choice for mobile constructions like highways, bridges, ports, hydropower and other projects.

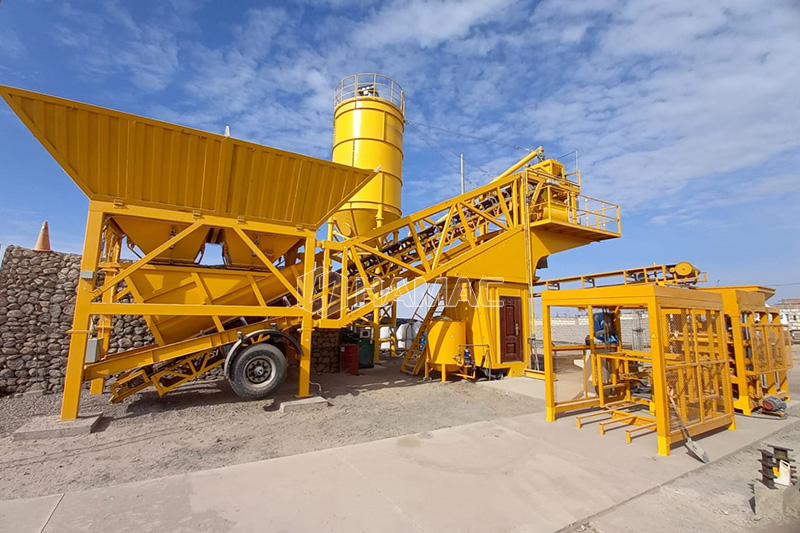

Mobile concrete batching plant in Arequipa, Peru
Features:
The mobile batching plant adopts the trailer design, the belt conveyor weighing system, the central concrete mixer, independent weighing system, the screw conveyor and the cement silo are highly integrated and form an integral system.
Independent weighing system for cement, water and additive

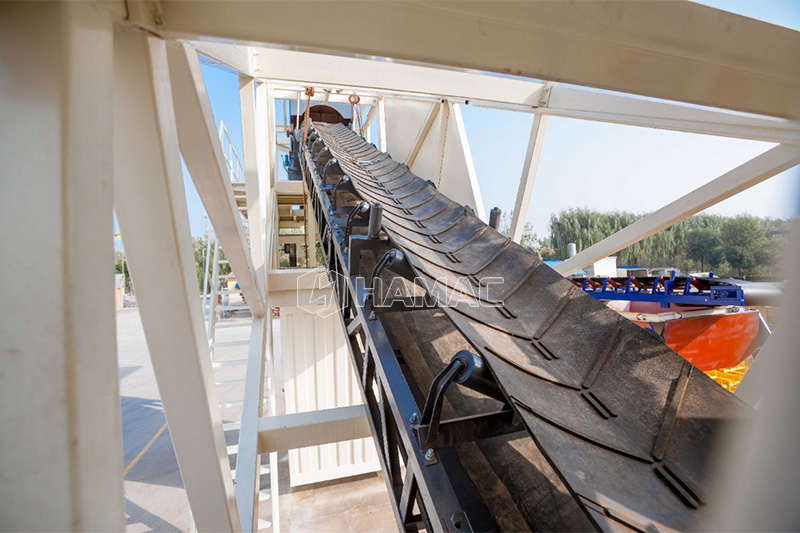

Belt conveyor weighing system for aggregates and sand
In order to meet customers’ demands for efficiency, functionality and compactness, the mobile batching plant is delivered as a fully pre-connected complete set, which significantly reduce the installation and commissioning time of the batching plant.
The control room is connected with the main structure, the control panel and other equipment have been tested before leaving the factory, so there is no need to disassemble and connect the cables when the equipment is transferred.

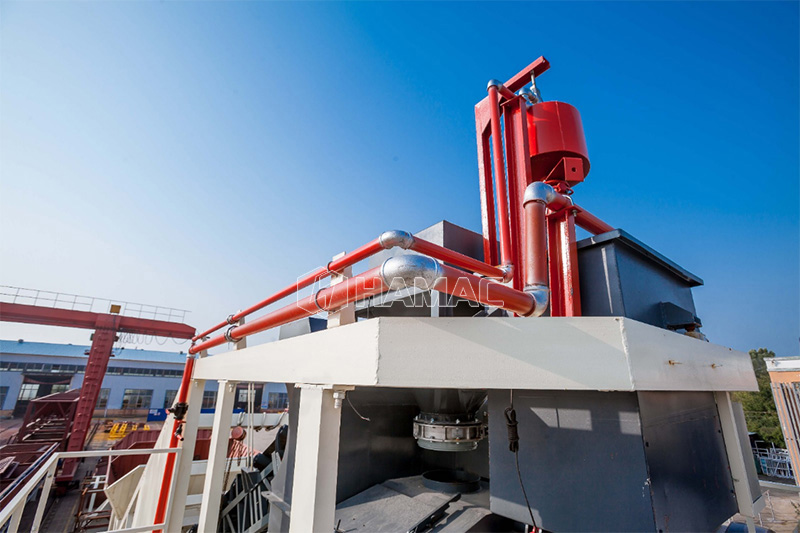

The air circuit system is closely connected with the main structure, so it does not need to be dismantled during transition.

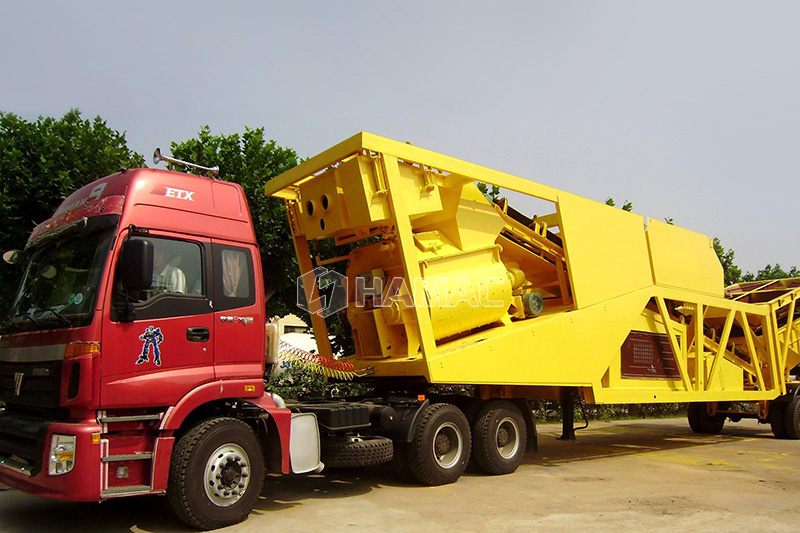

Mobile concrete batching plant is being towed as a complete system
All the required parts are integrated in the same trailer concrete batching plant
As a manufacturer of concrete batching plant, HAMAC can provide our clients with the mobile concrete batching plant from 25m3/h-100m3/h. And we can provide you with the different ways to feed the bulk cement and cement in BIGBAG.
For the cement in BIGBAG, we will provide the hopper with screw conveyor. There is a knife in the hopper, the BIGBAG will be cut and the cement will be discharged into the hopper.
If the client wants to use a cement silo stock the cement in BIGBAG, we can provide you with a pneumatic tank with air compressor to blow the cement into the cement silo.

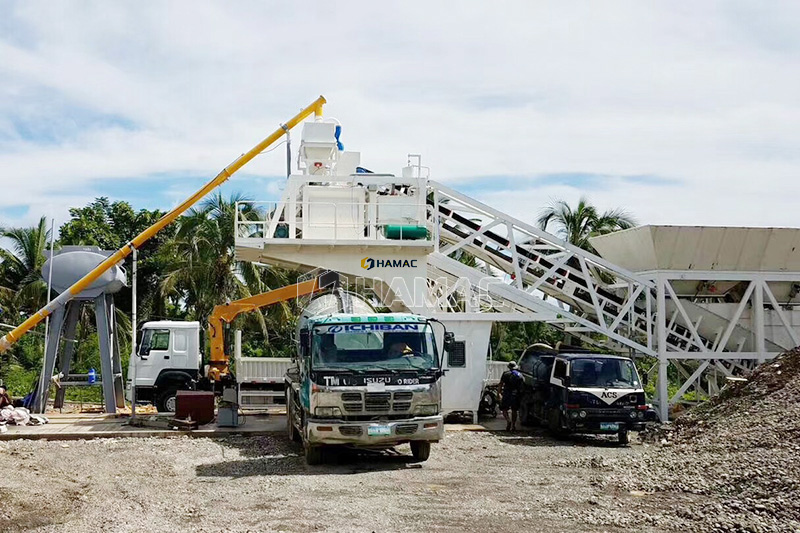

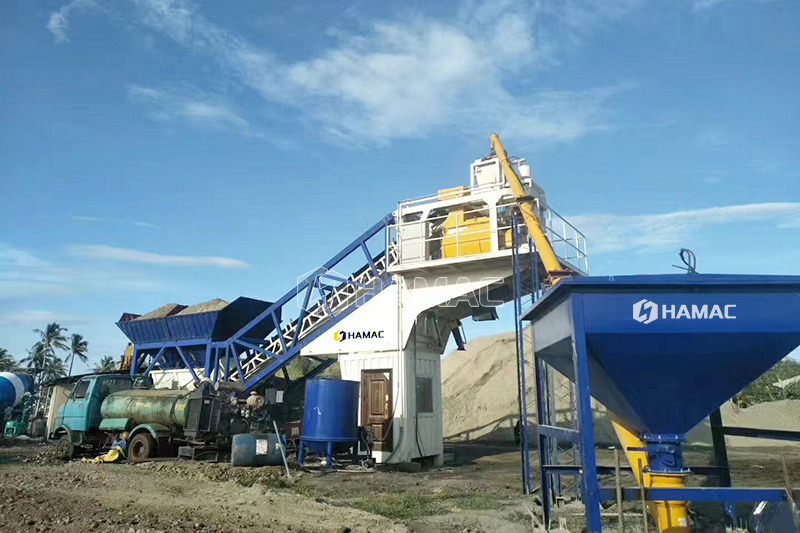

Mobile concrete batching plant in the Philippines feed by BIGBAG cement
Pneumatic device to supply the BIGBAG cement into cement silo
If the client wants to use the bulk cement which is supplied by the cement factory directly, there is a feeding pipe on the cement silo. It can be connected with the bulk cement carrier and then the cement will be blown into the cement silo.

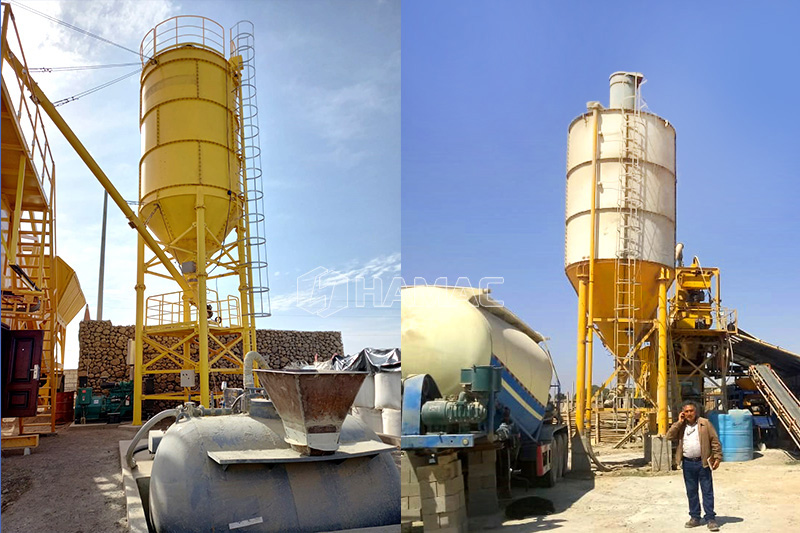

Different feeding ways for bulk cement

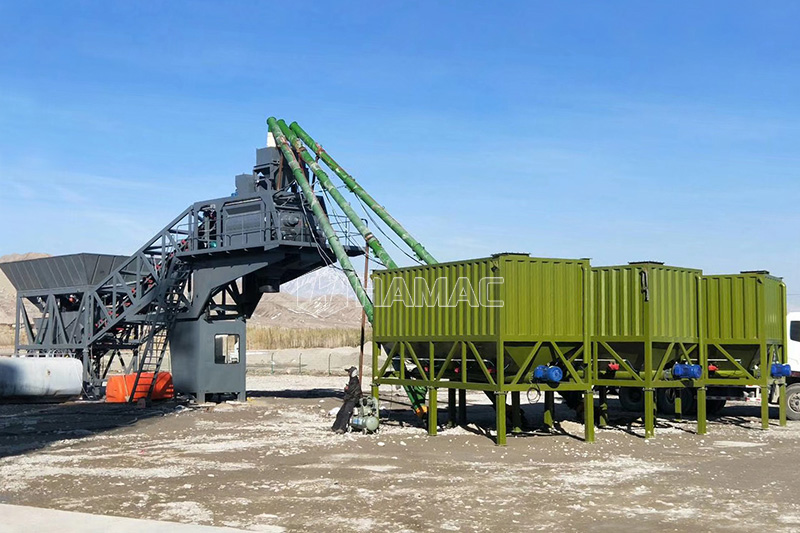

Horizontal cement silo and screw conveyor for the mobile concrete batching plant
For more information, please contact our expert or send us an email to get a solution.
