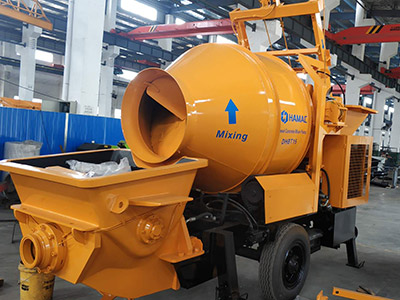

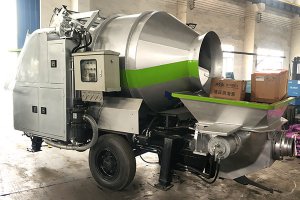

Concrete Mixer With Pump
● Products :HBT25-L2 Concrete Mixer Pump
● Type :Concrete Mixer With Pump
● Brand :HAMAC
● Origin :China
If you want to know more details, please contact us, we will reply you as soon as possible.
>
Product Introduction>
Benefits & Features>
More Info
| Model | HBT25-L2 Concrete Mixer Pump | ||
| Product name | Trailer batch pump | ||
| Pumping system | |||
| ITEM | SPEC | ITEM | SPEC |
| Generator | 100KW | Main motor | 37KW |
| Main pump | KAWASAKI K3V112 | Aggregate size |
Pebble: 40mm Crushed stone: 30mm |
|
Deliver cylinder Diameter*stroke |
Φ200*1000 |
Main oil cylinder Rod*stroke |
Φ100*φ70*1000mm |
| Distribution valve | S valve | Outlet diameter | Φ200 |
| Hydraulic oil tank | 300L | Delivery pipe | Φ125 |
| Slumps | 12-23cm | Max.theo. Pumping output | 40m3/h |
| Mixing system | |||
| Mixer | JS500 | Mix motor | 18.5KW |
| Feeing hopper x filling height | 800L x 1200mm | Hoist motor | 5.5KW |
|
Discharging capacity |
500L | Water pump | 0.75KW |
| Max. Theoretical mixing output | 25m3/h | Vibrator | WAM 0.75kW*2 |
| Batching system | |||
| Hopper capacity | 1.8m3*2 | Compressor | 3 bar |
| Wireless control | Included | Sliding rail | Included |
| Overall Dimension | |||
| Operating size | 8900*2210*3100mm | Total weight | 8000KG |
| Transport size | 6900*2210*3100mm | Hydraulic leg |
6 PCS |

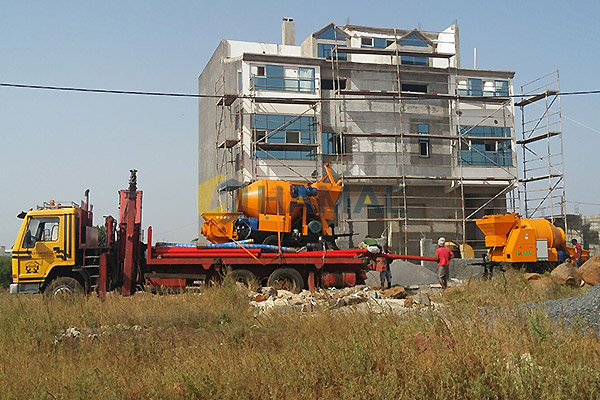

Product categories: concrete mixer with pump
Capacity: 15 m3
Main Equipments: DHBT15 concrete mixer with pump
Application City: Calamba
Product categories: concrete mixer truck with pump
Capacity: 15m3
Main Equipments:
Application City: Angeles
Product categories: Concrete mixer with pump
Capacity: 25 Cubic meters per hour
Main Equipments: JBT30 concrete mixer with pump
Application City: Lucena
Product categories: diesel concrete mixer
Capacity: 25 Cubic meters per hour
Main Equipments: JZR500 diesel concrete mixer
Application City: Bayan ng Cainta
Technical support and after-sales service team in the Philippines
1. 24 hours online service freely;
2. One year warranty time except for vulnerable parts.
3. Life long maintenance service;
4. Send engineers to install and debug the equipment;
5. Freely train operators to use and maintain skills;
6. Send engineers to fix failure if customers need;
7. Supply all kinds of spare parts;
