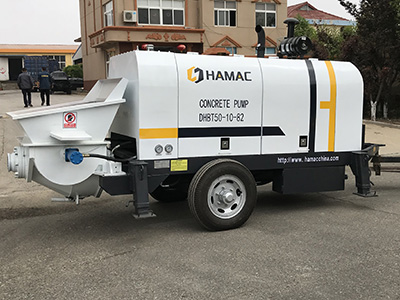

Diesel Concrete Pump(DHBT series)

1. Radiator: adopts the air-cooled plate-fin radiator to ensure that the system could operate in a maximum temperature allowed.
2. The main oil pump: adopts the German Hawe / Rexroth / Japanese Kawasaki series.
3. Lubrication system: adopts the automatic multi-point lubrication technology featuring one to one lubrication with better efficiency and the extending service life of wearing parts.
4. Power system: the power of motor series uses the well-known domestic and foreign brands: Yantai motor, Qingdao motor, Siemens Beide motor.
5. Diesel Series: power system employs the Lovol or Deutz diesel engine;
6. Electrical parts: the main electrical products adopts Schneider , LG products to the reliability of the electronic control system.
7. Hydraulic Hose Fittings: adopts the US Eaton products to ensure the safety of the hydraulic system, no leakage.
8. Large cylinder seals: Large cylinder seals adopts the US Parker products.
9. S valve: employing the manganese steel overall casting, the wearing surface adopts wear-resistant materials featuring the dual advantages of pressure and abrasion resistant.
10. Glasses plate cutting ring: glasses plates and cutting ring inlaid adopts the carbide hard to ensure a durable design.
11. Pistons: adopts the imported materials and precision machining, with excellent qualities: hydrolysis resistance, wear resistance and high temperature resistance.

Tags: mobile concrete pump in Raspinas concrete pump indonesia in Mandawi concrete pressure pump in Mandawi semi automatic fsemi automatic fly ash brick making machine in Maraon5 yard concrete mixer truck in Biñanconcrete pump truck parts in San Fernandonew concrete pumps for sale in Iloilo

Item	Unit	DHBT30	DHBT40	DHBT50	DHBT60	DHBT80	DHBT90
Theoretical Capacity	M³/H	30	40	50	60	80	90
Delivery Pressure	Mpa	10	10	10	13	16	22
Max. Pump Times	Times/Min	24	20	22	22	23	23
Delivery Height	M	120	120	120	180	180	350
Delivery Distance	M	500	500	500	600	1000	1500
Distribution Valve Type		S Tube Valve	S Tube Valve	S Tube Valve	S Tube Valve	S Tube Valve	S Tube Valve
Delivery Cylinder Type	Mm	Φ140×1200	Φ180×1300	Φ180×1300	Φ200×1650	Φ200×1650	Φ200×1800
Main Oil Pump	Mm	Φ80/55×1200	Φ100/70×1300	Φ110/70×1300	Φ125/80×1650	Φ125/Φ80×1650	Φ125/Φ80×1650
Oil Tank Capacity	L	260	370	370	560	560	560
Hopper Capacity	L	400	400	400	800	800	800
Filling Height	Mm	1100	1100	1100	1400	1400	1400
Outlet Diameter	Mm	Φ125	Φ150	Φ150	Φ180	Φ180	Φ200
Delivery Pipe Inner Diameter	Mm	Φ125/Φ100	Φ125	Φ125	Φ125	Φ125	Φ125
Engine Power	Kw	56	82	82	129	129/145	199
Rated Spped	R/Min	2200	2200	2300	2300	2300	2300
Idling Speed	R/Min	800	800	800	800	800	800
Voltage	V	24V	24V	24V	24V	24V	24V
Fuel Tank	L	150	150	150	150	150	150
Hydraulic Oil-Way Type		Open	Open	Open	Open	Open	Open
Max. Oil Pressure	MPa	26	31.5	31.5	31.5	31.5	31.5
Max. Oil Pressure For Mixing System	MPa	6-8	6-8	6-8	6-8	6-8	6-8
Max. Mixing Speed	R/Min	24	24	24	24	24	24
Slump	Mm	80～200	80～200	80～200	80～200	80～200	80～200
Maximum Aggregate Size	Mm	≤30（≤20）	Aggregate 40	Pebble 50, Aggregate 40	Pebble 50, Aggregate 40	Pebble 50, Aggregate 40	Pebble 50, Aggregate 40
Overall Dimension	Mm	4970×1680 ×2580	5270×1860 ×2580	6600×1930 ×2190	6600×1930 ×2190	6600×1930 ×2190	6800×2100 ×2350
Wight	Kg	3500	4500	4500	6500	6800	7000
Towing Speed	Km/H	≤8	≤8	≤8	≤8	≤8	≤8

Note: Our products are being updated constantly, all rights reserved by HAMAC.
